Product Dimensions / Specifications

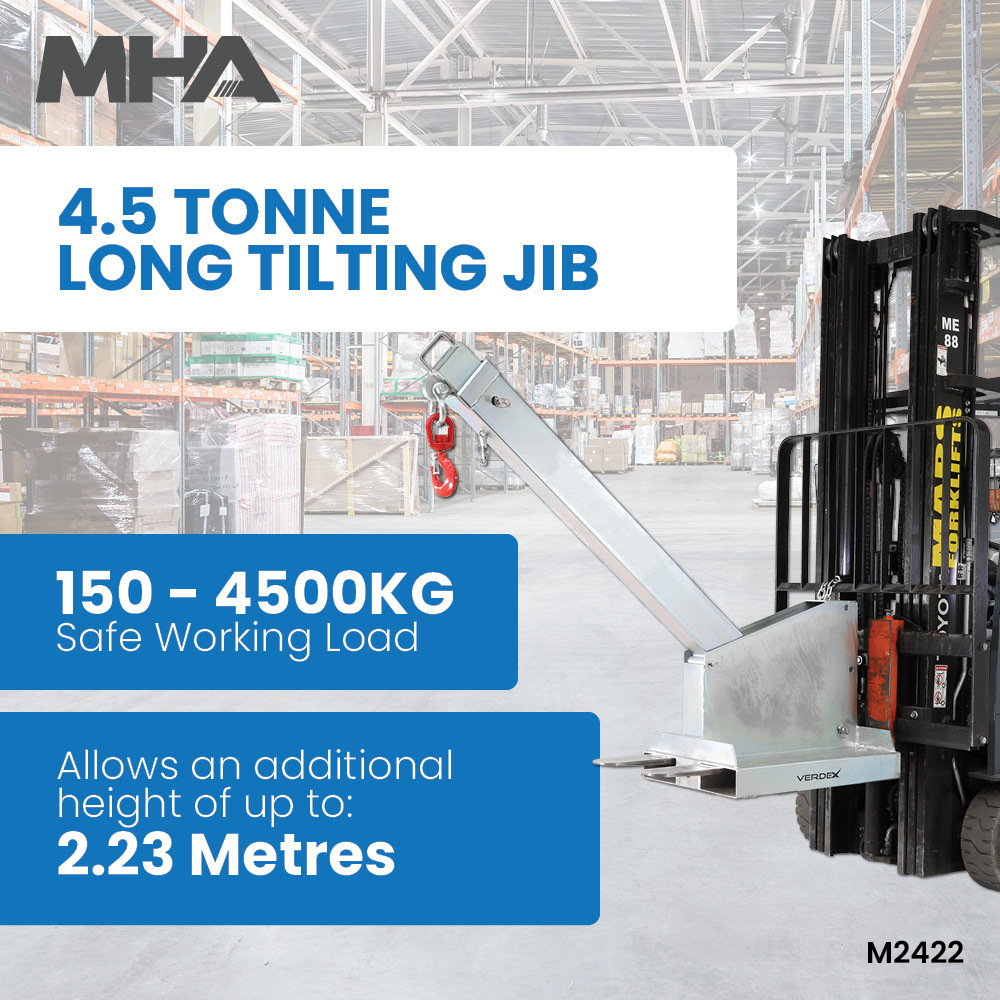

This 4500kg long tilting jib is the most verstatile jib in our range and allows for additional height of up to 2.23 metres.

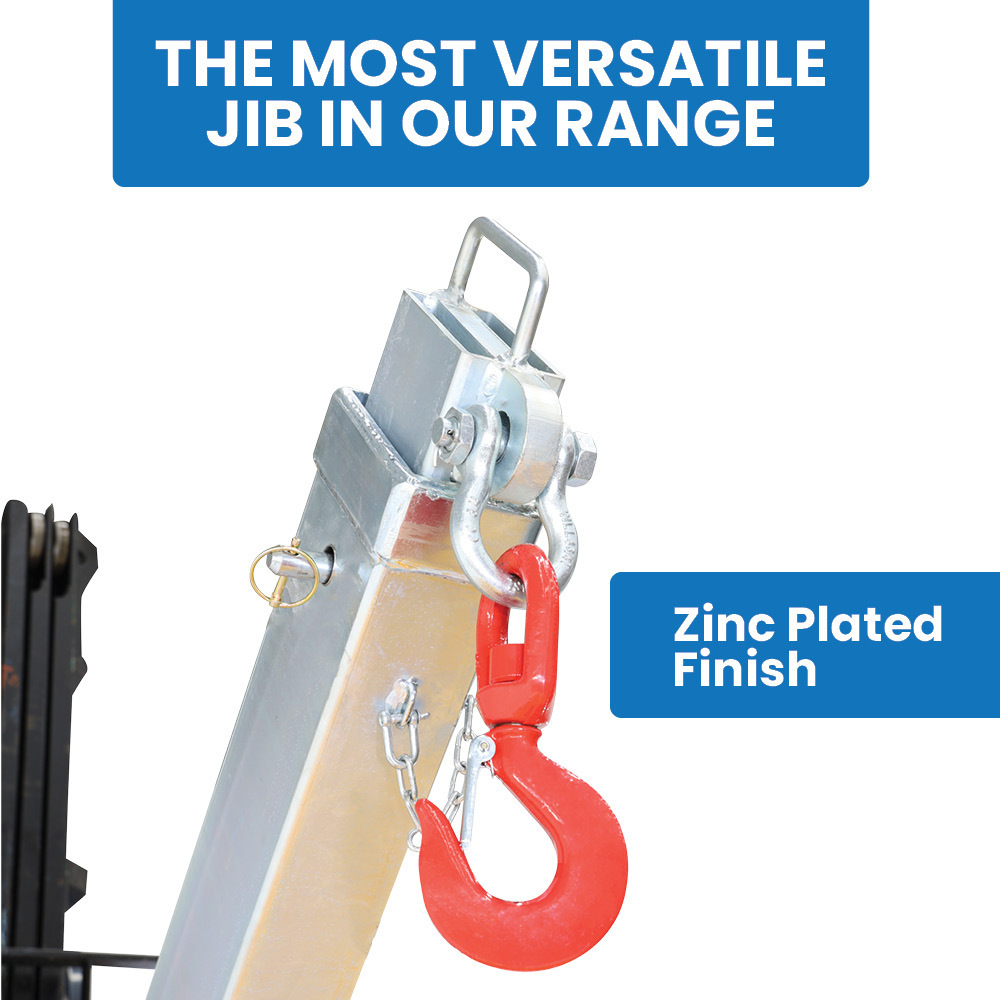

  • Finish: Zinc plated

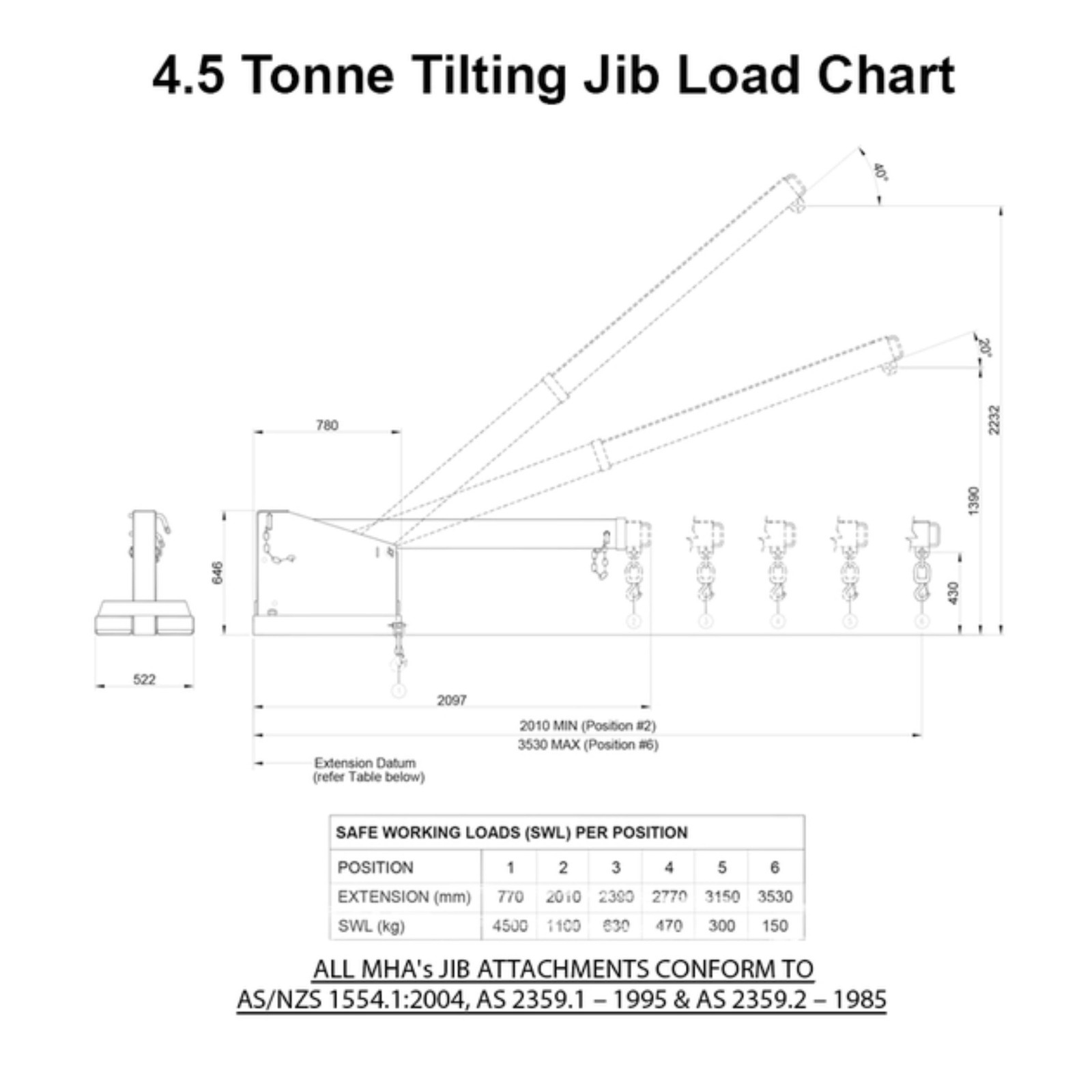

  • Safe Working Load: 4500kg (SWL load chart is shown on jib)

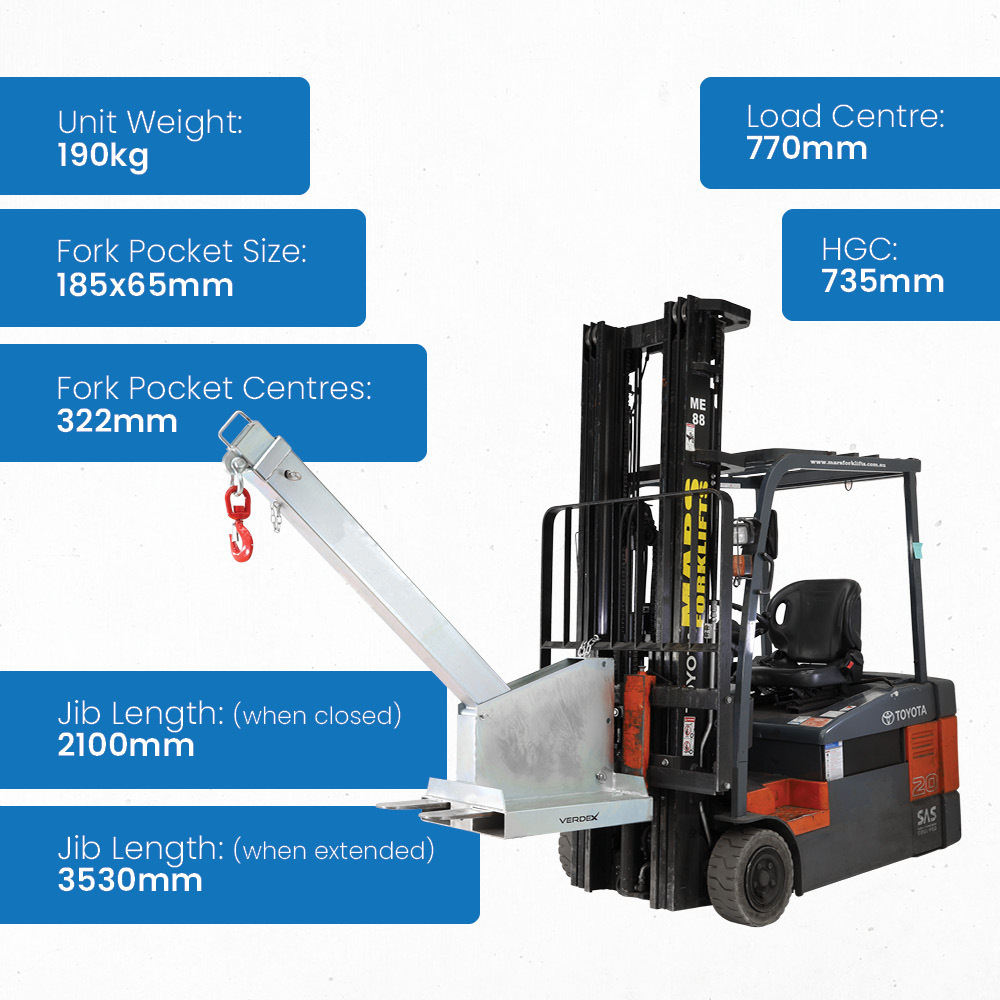

  • Load Centre: 770mm
  • HGC: 735mm
  • Jib Length (when closed): 2100mm
  • Jib Length (when extended): 3530mm

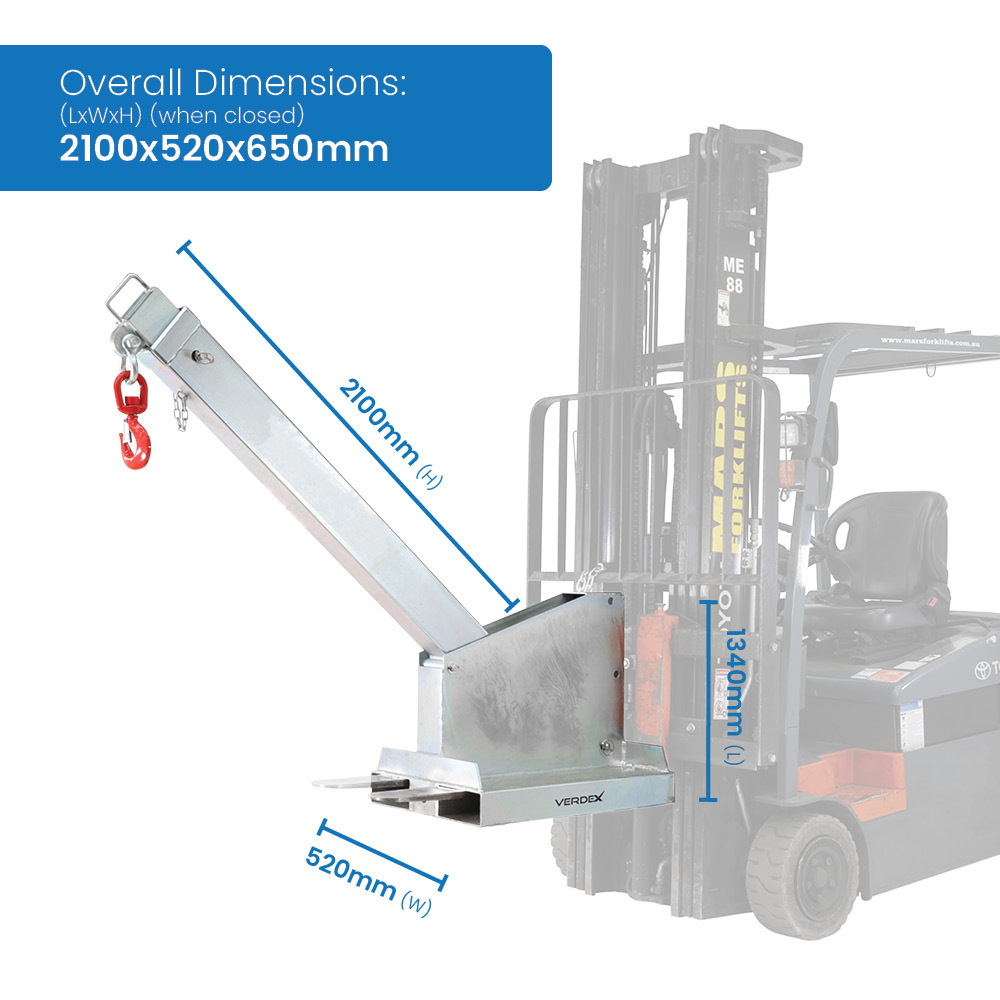

  • Overall Dimensions when closed (LxWxH): 2100x520x650mm
  • Fork Pocket Size: 185x65mm
  • Fork Pocket Centres: 322mm
  • Unit Weight: 190kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

4.5 Tonne Long Tilting Jib The 4.5 Tonne Long Tilting Jib is a versatile lifting accessory designed to enhance the capabilities of your crane or forklift. Ideal for handling large and heavy loads, this jib is engineered for both efficiency and safety in demanding industrial and construction settings. Constructed from high-strength steel, the Long Tilting Jib supports a maximum load of 4.5 tonnes, providing robust and reliable performance. Its long reach ensures you can handle bulky items with ease, while the tilting feature allows for precise load positioning and manoeuvring, making it perfect for navigating tight spaces or adjusting the angle of the load. The jibÂ’s design includes adjustable tilt angles and secure locking mechanisms, ensuring stability and safety during operation. Its durable construction guarantees longevity, even in the toughest working conditions. Enhance your lifting operations with the 4.5 Tonne Long Tilting Jib, a powerful and adaptable tool that delivers flexibility, precision, and strength to meet all your heavy lifting needs.
