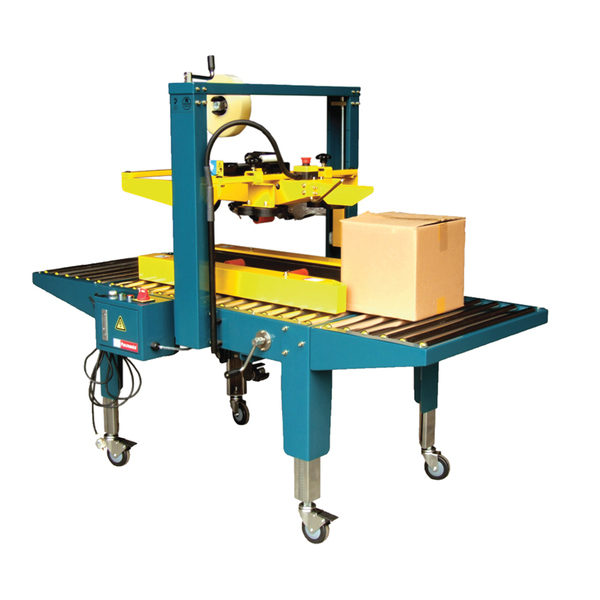

Automatic Carton Sealing Machine
Click on image above to enlarge

Packaging Machinery

Automatic Carton Sealing Machine


$5,245.00 Price excludes GST

SKU

PMCS100

Availability:

In StockIn Stock

Subtotal:

$5,245.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

This PMCS-100 Carton Sealing Machine can seal both top and bottom of the carton simultaneously at a fast speed. The box to besealed is driven by the two side belts through the machine, while rolling dispensers apply the pressure sensitive tape. After the sealed box is discharged, the machine is immediately ready for the next box.



  • Fast taping of all types/sizes of cartons/boxes (Height adjustable)
  • Easy operation, just push box & release.
  • Double motor ( two side-drive belts), can push the heaviest of boxes
  • Heavy-duty body with powder coated finish
  • Robust machine design & long-working, trouble-free life.
  • Freely movable on caster wheels, wherever your packing work is done
  • Interchangeable top and bottom dispenser
  • Tape overlap length can be adjusted
  •  Blade guards, safe to work
  • Precise operation
  • Technically advanced
  • Saves time
  • Lifts productivity
  • Seals cartons neatly & efficiently
  • Capacity: 30kg
  • Power Supply: 220V/50Hz, 400W
  • Carton Size: L (no limit) W(120-480mm) H(120-480mm)
  • Tape Size: 48-60mm machine roll
  • Sealing Speed: 30 cartons/min
  • Worktable Height: 650-850mm
  • Dimensions: L 1160 x W 886 x H 1585mm
  • Unit Weight: 200kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

The Automatic Carton Sealing Machine is designed to streamline and enhance your packing operations. Capable of sealing all types and sizes of cartons, this machine features height adjustability to accommodate various box dimensions. With a user-friendly design, you simply push the box and release for efficient sealing. Equipped with double motors and side-drive belts, it can handle even the heaviest boxes with ease. Its robust, powder-coated body ensures durability and a long, trouble-free service life. The machine is freely movable on caster wheels, allowing for flexible positioning in your packing area. The top and bottom dispensers are interchangeable, and the tape overlap length is adjustable to suit different sealing needs. Safety is a priority with blade guards included, ensuring safe operation. With a sealing speed of 30 cartons per minute, it significantly boosts productivity by sealing cartons neatly and efficiently. The machine handles cartons up to 480mm in width and height, and accommodates tape sizes from 48mm to 60mm. It operates on a 220V/50Hz power supply and weighs 200kg. Its dimensions are L 1160mm x W 886mm x H 1585mm, with a worktable height adjustable between 650mm and 850mm.
