General Site Equipment

Bulk Bag Filling Bucket


$7,070.00 Price excludes GST

SKU

QXB150

Availability:

APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

Subtotal:

$7,070.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

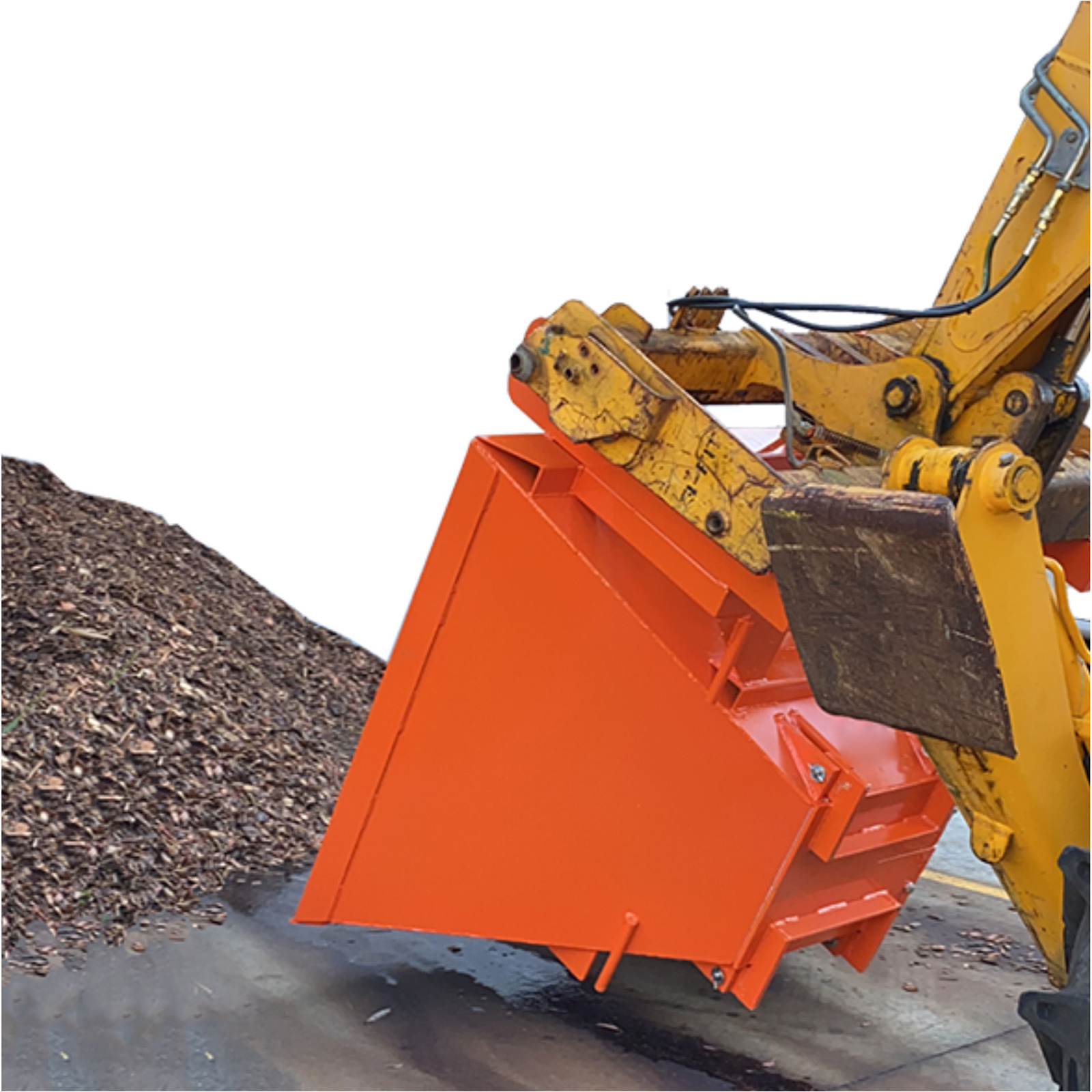

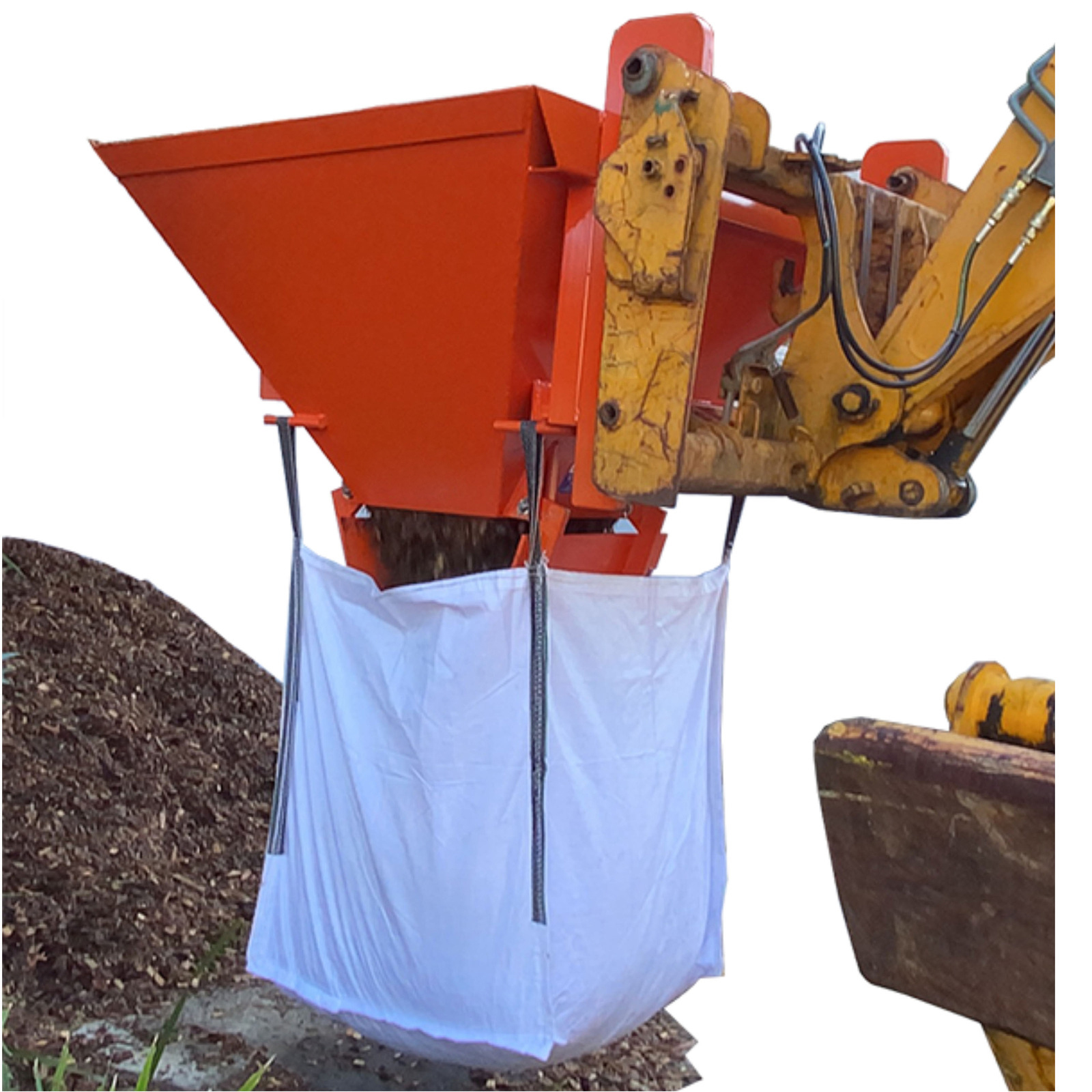

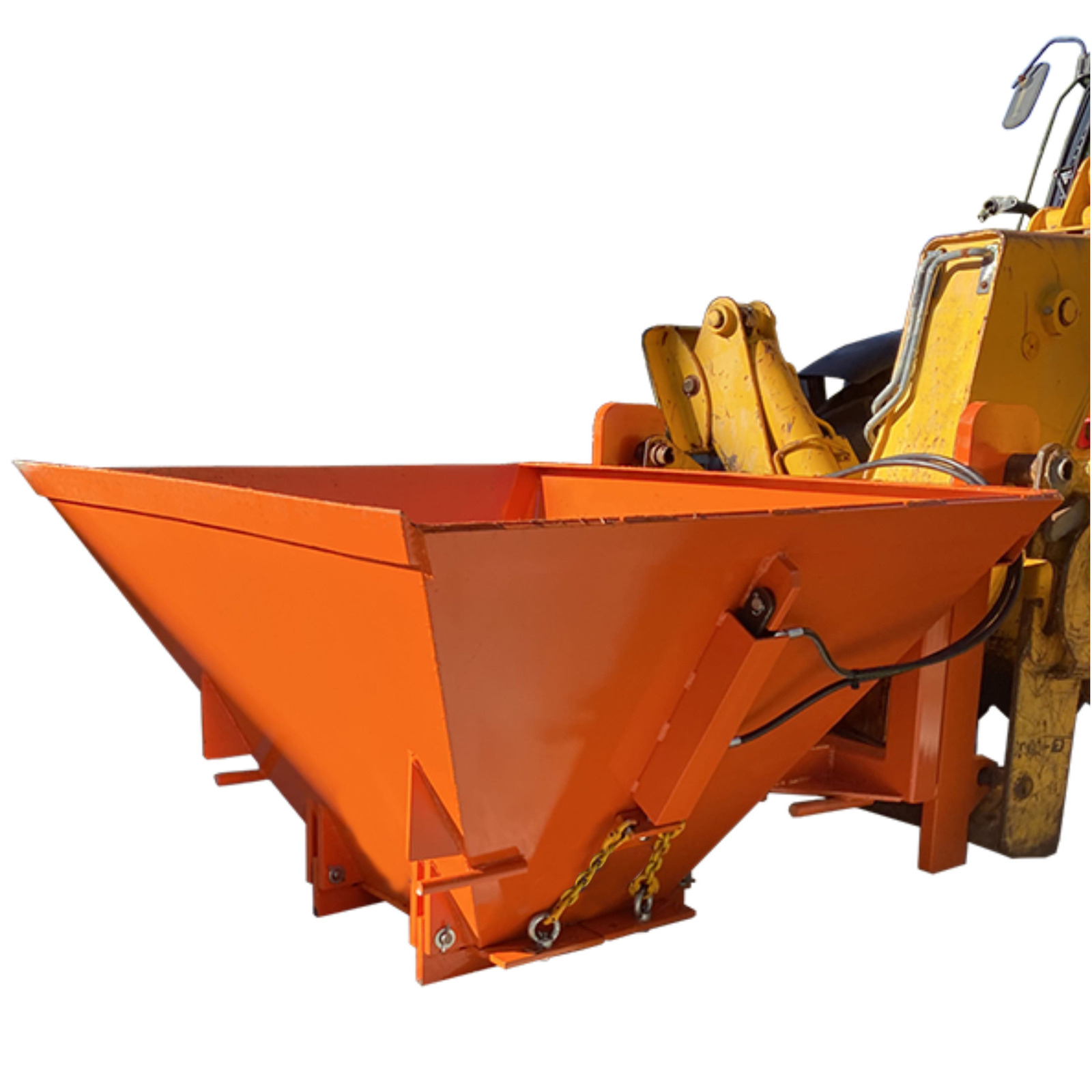

The QXB150 Bulk Bag Filling Bucket with hydraulically operated chute gate is designed to allow fast and easy filling of bulk bags with free-flowing materials such as sand, aggregate, gravel, soil, mulch etc by a telehandler or loader.

FEATURES:

  • Hardened steel wear cutting edge for longevity
  • Hydraulic operated chute gate allows fast and controlled material flow
  • Simple attachment of bulk bag
  • Quick detaching hooks allows easy stacking or loading of filled bulk bags without the operator leaving their seat
  • Individually designed to suit quick hitch carriage as specified by customer
  • Hydraulic cylinders guarded for protection
  • Enamel paint finish
  • Volume Capacity: 0.75cu.m
  • Working Load Limit (WLL): 1500kg
  • Load Centre: 670mm + hitch
  • Hopper Opening: 510x440mm
  • Overall Dimensions: 1525x1340x885mm
  • Unit Weight: 270kg + hitch


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Bulk Bag Filling Bucket is engineered for efficiency and durability in bulk material handling. Constructed with a hardened steel wear cutting edge, it ensures long-lasting performance even under rigorous use. The hydraulic-operated chute gate allows for precise and rapid control of material flow, enhancing filling speed and accuracy. This bucket features a simple attachment system for bulk bags, along with quick detaching hooks that facilitate easy stacking or loading of filled bags without requiring the operator to leave their seat. The design is tailored to fit quick hitch carriages as specified by the customer, ensuring compatibility with existing equipment. The hydraulic cylinders are guarded for protection, extending the lifespan of the equipment. Finished with enamel paint, the bucket offers durability and resistance to harsh conditions. With a volume capacity of 0.75 cubic meters and a working load limit of 1500kg, it is built to handle substantial loads efficiently. The hopper opening measures 510x440mm, and the overall dimensions are 1525mm x 1340mm x 885mm. The unit weighs 270kg plus the hitch.
