Concrete Kibble 1 cubic meter Concrete Kibble 1 cubic meter
Click on image above to enlarge

Concrete Equipment

Concrete Kibble 1 cubic meter


$3,880.00 Price excludes GST

SKU

CKM10

Availability:

APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

Subtotal:

$3,880.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

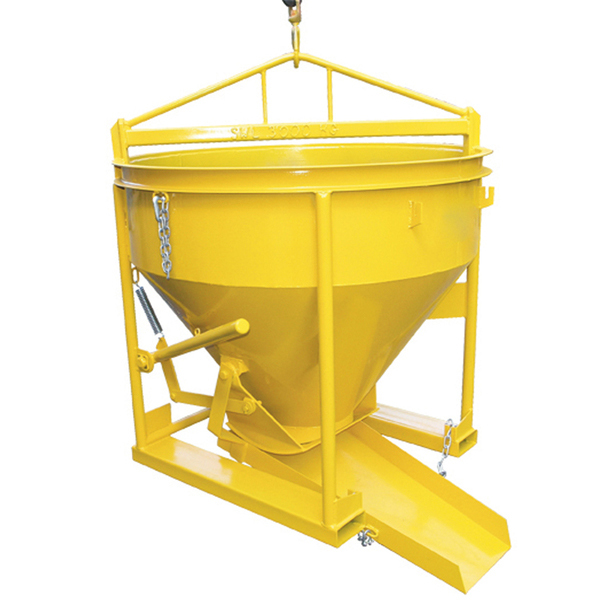

This concrete kibble has been designed for easy transfer of concrete on site by an overhead crane. This lightweight, yet heavy duty kibble can be used for both bottom and side discharge, with the use of the adjustable chute.

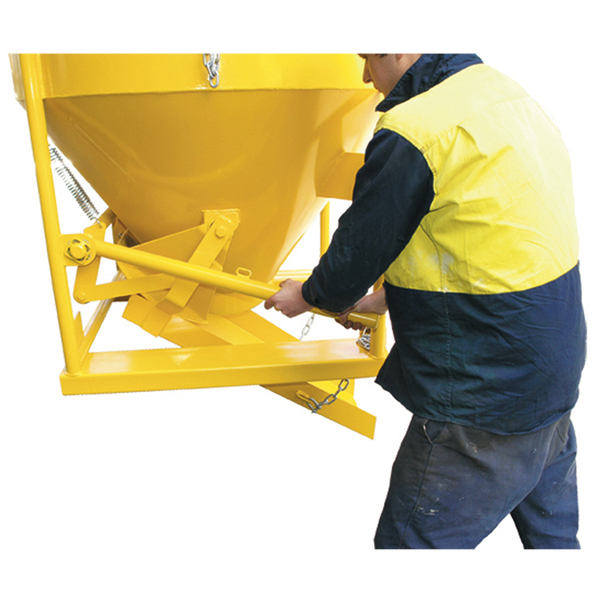

The unit is lever operated from either side for easy flexible operation and heightened user control.  Easily transport around a working environment or job site with it's included forklift pockets. This accessory helps facilitate safe and manageable pouring of concrete with an enamel painted finish in Safety Yellow.



SPECIFICATIONS:

  • Painted ‘Safety Yellow” enamel
  • Safe Working Load (SWL) 3000kg
  • Volume Capacity 1.0 cubic metres
  • Fork Pocket Size 165 x 65mm
  • Fork Pocket Centres 870mm
  • Overall Dimensions (LxWxH): 1760x1655x1705mm
  • Unit Weight: 320kg





Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Concrete Kibble 1 Cubic Metre is engineered for heavy-duty use, offering reliable performance in transporting and handling bulk materials such as concrete. With a safe working load (SWL) of 3000kg and a volume capacity of 1.0 cubic metre, this kibble is designed to manage large quantities with ease. Constructed for durability, it features a sturdy build and is finished in a high-visibility ‘Safety Yellow’ enamel, enhancing safety and visibility on site. The unit weighs 320kg and includes fork pockets with dimensions of 165 x 65mm, and fork pocket centres at 870mm, ensuring secure handling by forklift. The kibble's overall dimensions are 1760x1655x1705mm (LxWxH), providing ample space for efficient material management. This Concrete Kibble combines strength and functionality, making it an essential asset for construction sites and industrial applications, designed to withstand the rigours of demanding environments while ensuring safe and effective operations.
