Concrete Equipment

Concrete Kibble - Slide Valve


View Pricing & Order

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.

SPECIFICATIONS:

  • Suits use with concrete and other materials
  • Ideal for filling wall cavities, columns and other confined spaces
  • Lever actuated slide valve allows operator to regulate concrete flow
  • 200mm diameter Slide Valve allows precise control over the concrete flow
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and Crane Lugs fitted for transport around the work site
  • Smooth interior allows easy discharge and fast cleaning
  • Also available as a hydraulic unit (CKSV10-HPP) allowing remote control of kibble
  • Enamel paint finish
  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cu.m
  • Transport Dimensions: 1505x1445x1870mm
  • Fork Pocket Size: 185x60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.

SPECIFICATIONS:

  • Suits use with concrete and other materials
  • Ideal for filling wall cavities, columns and other confined spaces
  • Lever actuated slide valve allows operator to regulate concrete flow
  • 200mm diameter Slide Valve allows precise control over the concrete flow
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and Crane Lugs fitted for transport around the work site
  • Smooth interior allows easy discharge and fast cleaning
  • Also available as a hydraulic unit (CKSV10-HPP) allowing remote control of kibble
  • Enamel paint finish
  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cu.m
  • Transport Dimensions: 1505x1445x1870mm
  • Fork Pocket Size: 185x60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg
View More Specifications

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

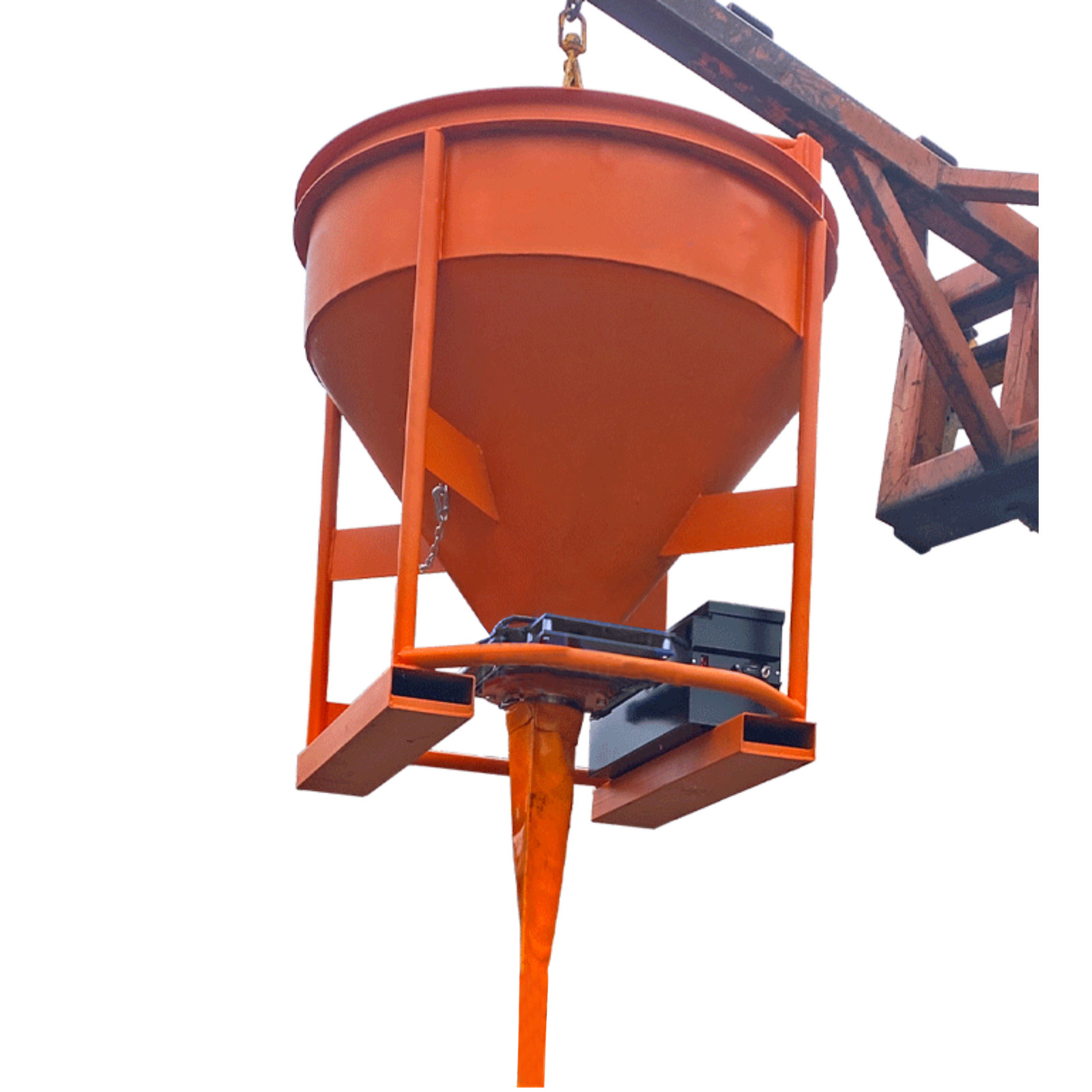

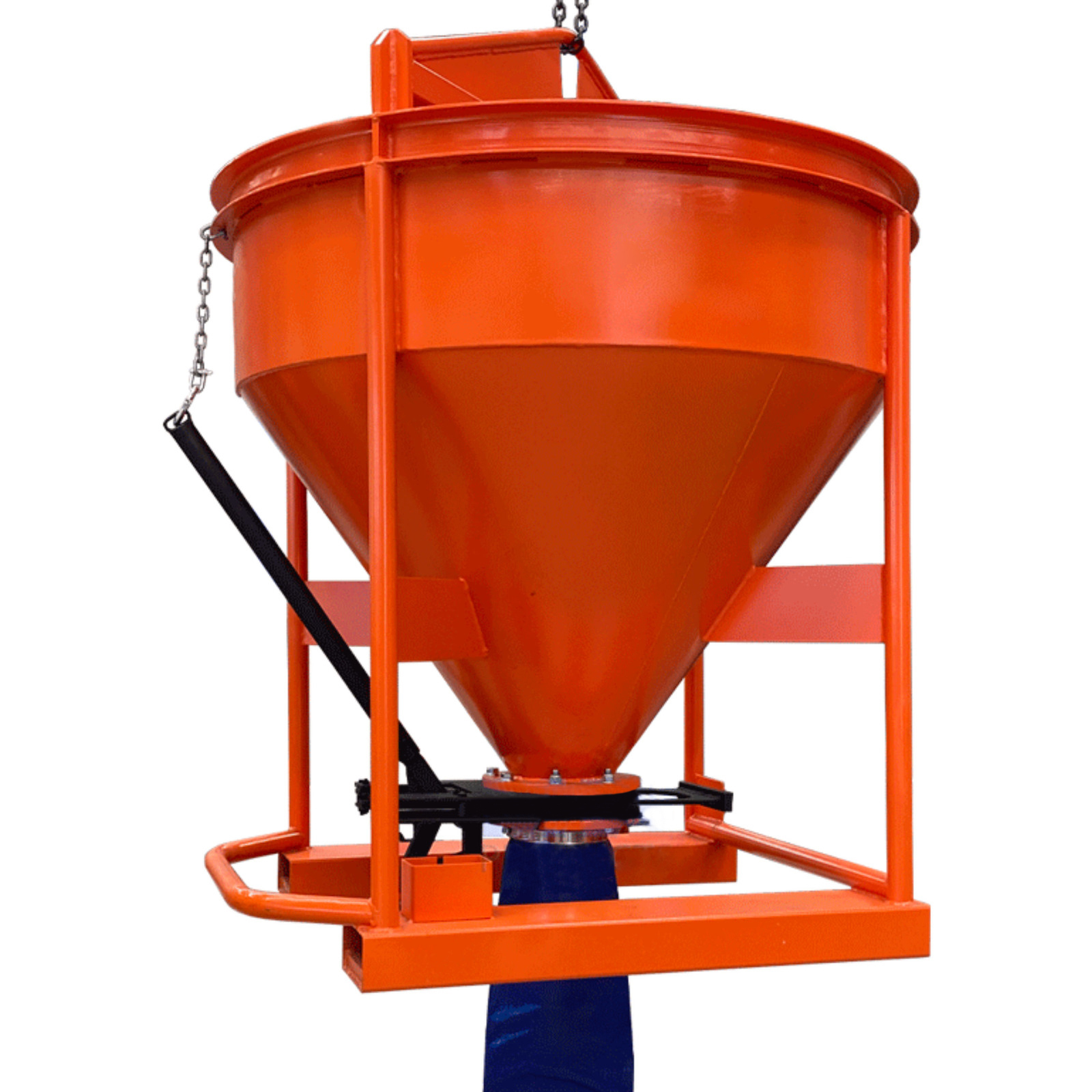

Concrete Kibble with hydraulic slide valve - 1.0cum x 3T WLL

Concrete Kibble with hydraulic slide valve - 1.0cum x 3T WLL

Product Code: CKSV10-HPP

  • Hydraulic Slide Valve allows remote control of Kibble
  • Enamel paint finish
  • 200mm diameter Slide Valve
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and Crane Lugs fitted for transport around the work site
  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cu.m
  • Transport Dimensions: 1505x1445x1870mm
  • Fork Pocket Size: 185x60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg
Concrete Kibble with hydraulic slide valve - 1.0cum x 3T WLL CKSV10-HPP
View Details

$10,400.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

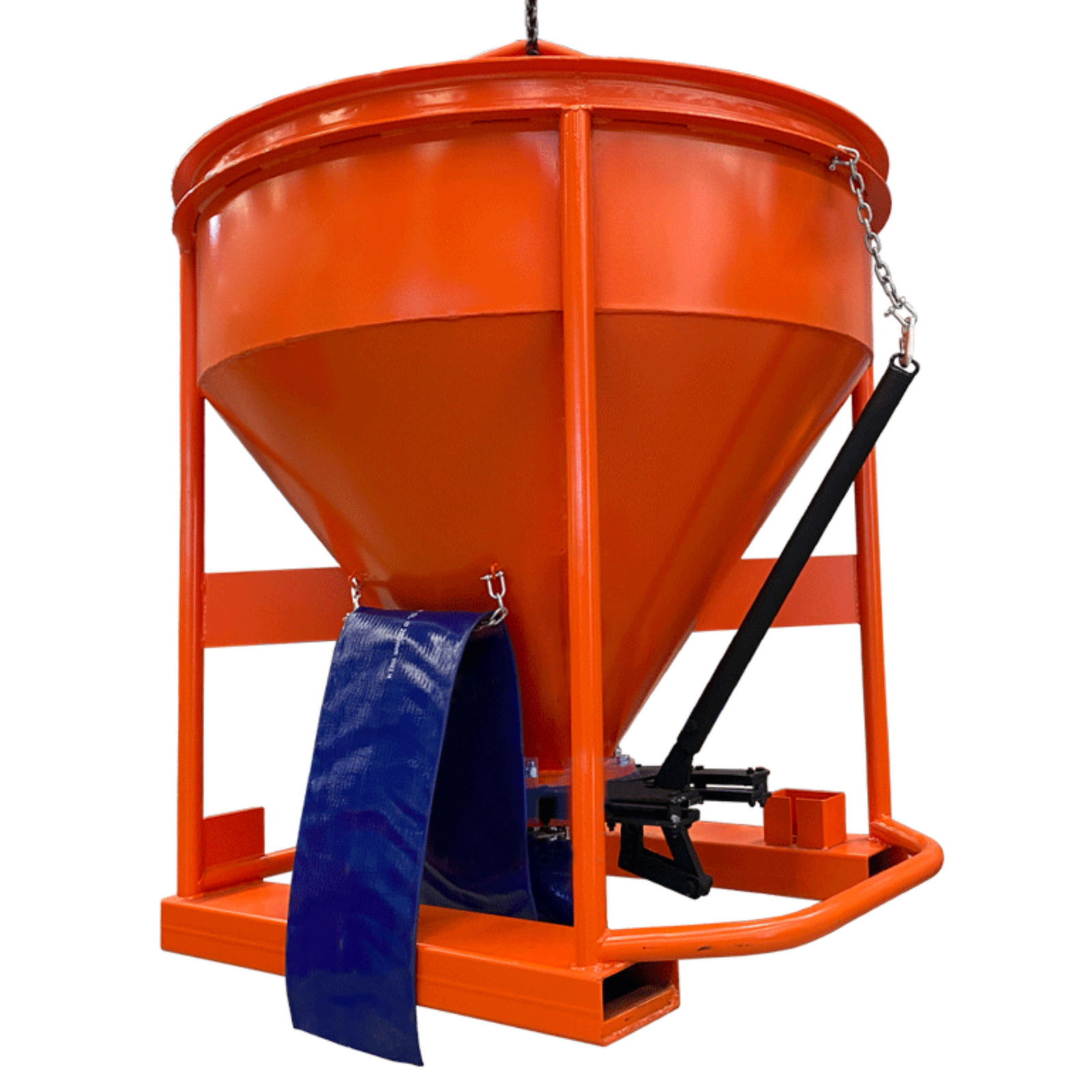

Concrete Kibble with manual slide valve - 1.0cum x 3T WLL

Concrete Kibble with manual slide valve - 1.0cum x 3T WLL

Product Code: CKSV10

  • Enamel paint finish
  • 200mm diameter Slide Valve
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and Crane Lugs fitted for transport around the work site
  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cu.m
  • Transport Dimensions: 1505x1445x1870mm
  • Fork Pocket Size: 185x60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg
Concrete Kibble with manual slide valve - 1.0cum x 3T WLL CKSV10
View Details

$4,320.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.

SPECIFICATIONS:

  • Suits use with concrete and other materials
  • Ideal for filling wall cavities, columns and other confined spaces

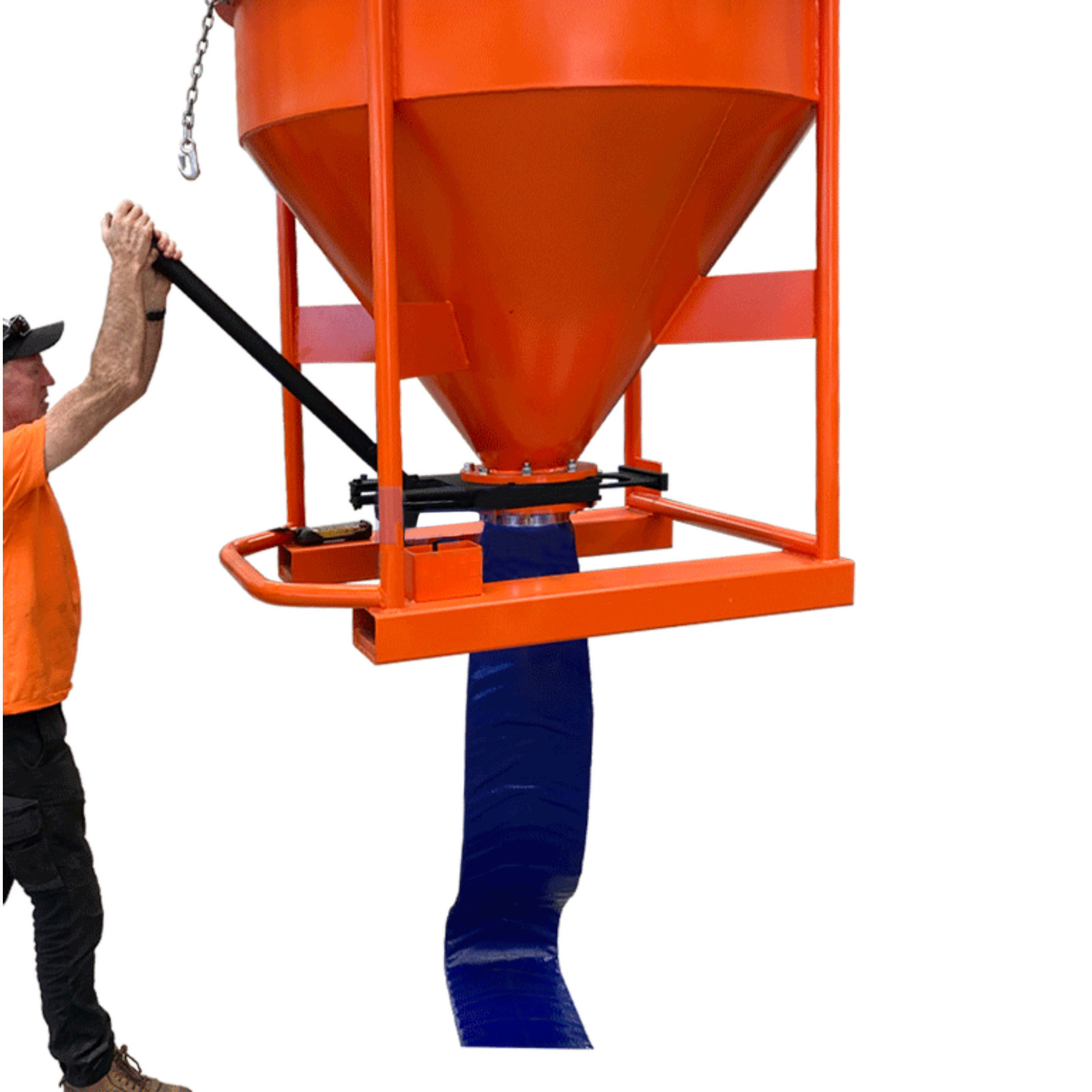

  • Lever actuated slide valve allows operator to regulate concrete flow

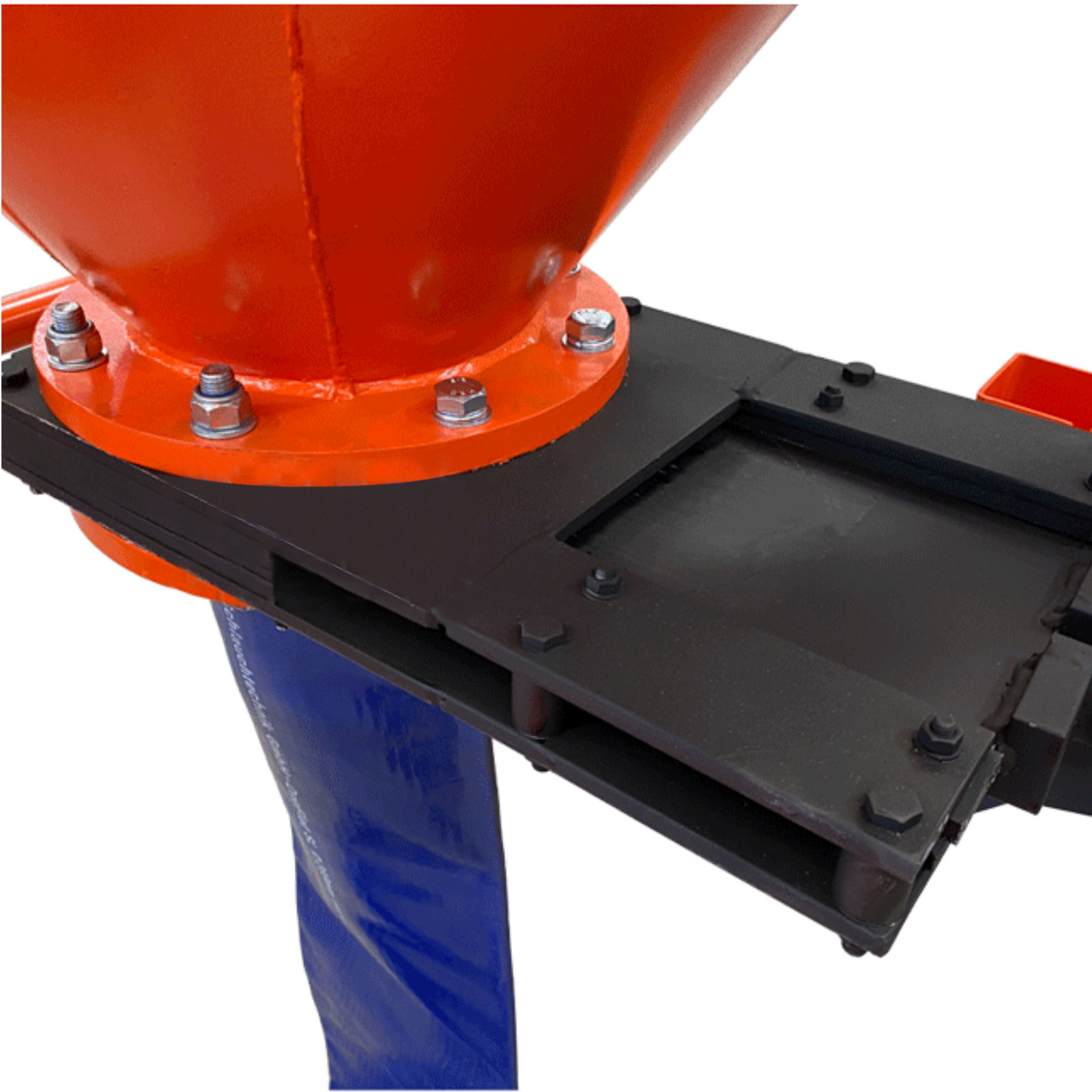

  • 200mm diameter Slide Valve allows precise control over the concrete flow
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and Crane Lugs fitted for transport around the work site
  • Smooth interior allows easy discharge and fast cleaning
  • Also available as a hydraulic unit (CKSV10-HPP) allowing remote control of kibble
  • Enamel paint finish
  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cu.m
  • Transport Dimensions: 1505x1445x1870mm
  • Fork Pocket Size: 185x60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Concrete Kibble with Slide Valve is designed for efficient handling and dispensing of concrete and other materials, particularly in confined spaces like wall cavities and columns. It features a lever-actuated slide valve that allows precise control over the flow of concrete, with a 200mm diameter valve ensuring accurate dispensing. The kibble includes a 1.5m long, 200mm diameter lay-flat hose, enhancing versatility for various application needs.

The smooth interior facilitates easy discharge and rapid cleaning, maintaining operational efficiency. For mobility and convenience on site, the kibble is equipped with fork pockets and crane lugs, and it is finished in a durable enamel paint. With a working load limit (WLL) of 3000kg and a capacity of 1.0 cubic metre, it is robust enough for substantial tasks. The transport dimensions are 1505 x 1445 x 1870mm (LxWxH), and it weighs 295kg. Additionally, a hydraulic version (CKSV10-HPP) is available for remote control operation, offering enhanced functionality for complex projects.

CKSV10 Concrete Kibble – Efficient & Controlled Concrete Handling

The CKSV10 Concrete Kibble is an essential item for safe and efficient concrete transfer on construction sites. Designed for use with an overhead crane, this high-quality, heavy-duty kibble ensures precise pouring and controlled concrete flow, making it ideal for wall cavities, columns, and confined spaces.

With a durable slide valve system, forklift pockets, crane lugs, and a smooth interior, this 1.0 cubic metre capacity kibble is constructed for efficiency, safety, and ease of use. For even greater convenience, a hydraulic remote-control option (CKSV10-HPP) is available, promising seamless operation from a distance.

Key Features & Benefits

✔ Versatile Use – Designed for handling concrete and similar materials, making it ideal for various construction applications.
✔ Precise Flow Control – The 200mm diameter slide valve allows operators to regulate concrete flow with precision.
✔ Easy Pouring in Confined Spaces – The 1.5-metre lay-flat hose guarantees smooth concrete placement in tight areas, such as wall cavities and columns.
✔ Multiple Transport Options – Fork pockets and crane lugs make it easy to move the kibble around the worksite.
✔ Smooth Interior for Quick Cleaning – Ensures fast concrete discharge and hassle-free maintenance.
✔ Hydraulic Remote Control Option Available – The CKSV10-HPP model allows for remote-controlled operation, improving efficiency and safety.
✔ Heavy-Duty Enamel Paint Finish – Delivers long-lasting durability and protection against harsh site conditions.

Designed for Efficiency & Safety

The CKSV10 Concrete Kibble is designed with ease of use and safety considered, making it an essential tool for construction professionals.

✔ Controlled Concrete Flow – The lever-actuated slide valve gives operators full control over the discharge rate, minimising spillage and waste.
✔ Easy Transport & Handling – Fork pockets and crane lugs allow for seamless movement across various job site locations.
✔ Ideal for Confined Spaces – The lay-flat hose ensures accurate placement of concrete, reducing mess and rework.
✔ Hydraulic Upgrade Available – The CKSV10-HPP version offers a hydraulic-powered remote-control system, improving convenience and precision.



Technical Specifications

  • Working Load Limit (WLL): 3000kg
  • Capacity: 1.0 cubic metre
  • Slide Valve Diameter: 200mm
  • Lay-Flat Hose Length: 1.5 metres
  • Transport Dimensions (LxWxH): 1505 x 1445 x 1870mm
  • Fork Pocket Size: 185 x 60mm
  • Fork Pocket Centres: 870mm
  • Unit Weight: 295kg

Ideal Applications

The CKSV10 Concrete Kibble is built for for a wide range of concrete handling applications, including:

✔ High-Rise Construction – Ensures accurate concrete pouring at elevated locations.
✔ Column & Wall Cavity Filling – The lay-flat hose allows for precise placement in confined spaces.
✔ Civil Infrastructure Projects – Great for bridges, tunnels, and large-scale developments.
✔ Precast Concrete Production – Facilitates controlled concrete discharge into formwork.

Why Choose the CKSV10 Concrete Kibble?

✔ Precise & Controlled Pouring – The lever-operated slide valve and lay-flat hose ensure accurate concrete placement.
✔ Built for Durability & Safety – Designed in accordance with Australian Standards, ensuring maximum reliability.
✔ Flexible Transport & Handling – Equipped with fork pockets and crane lugs for easy movement on-site.
✔ Hydraulic Control Option Available – The CKSV10-HPP version offers remote-controlled operation, minimising manual handling risks.
