CPC Concrete Washout Bin

Click on image above to enlarge

Concrete Equipment

View Pricing & Order

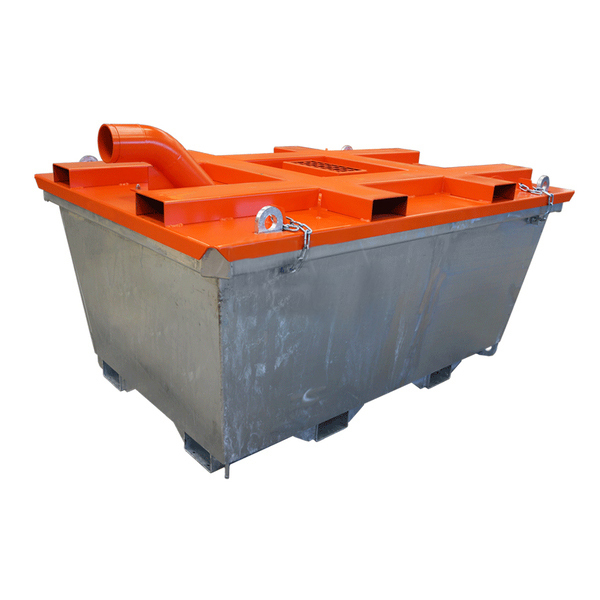

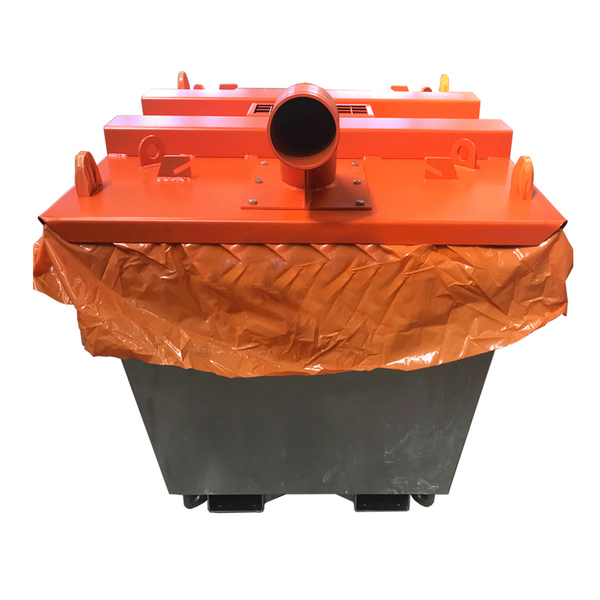

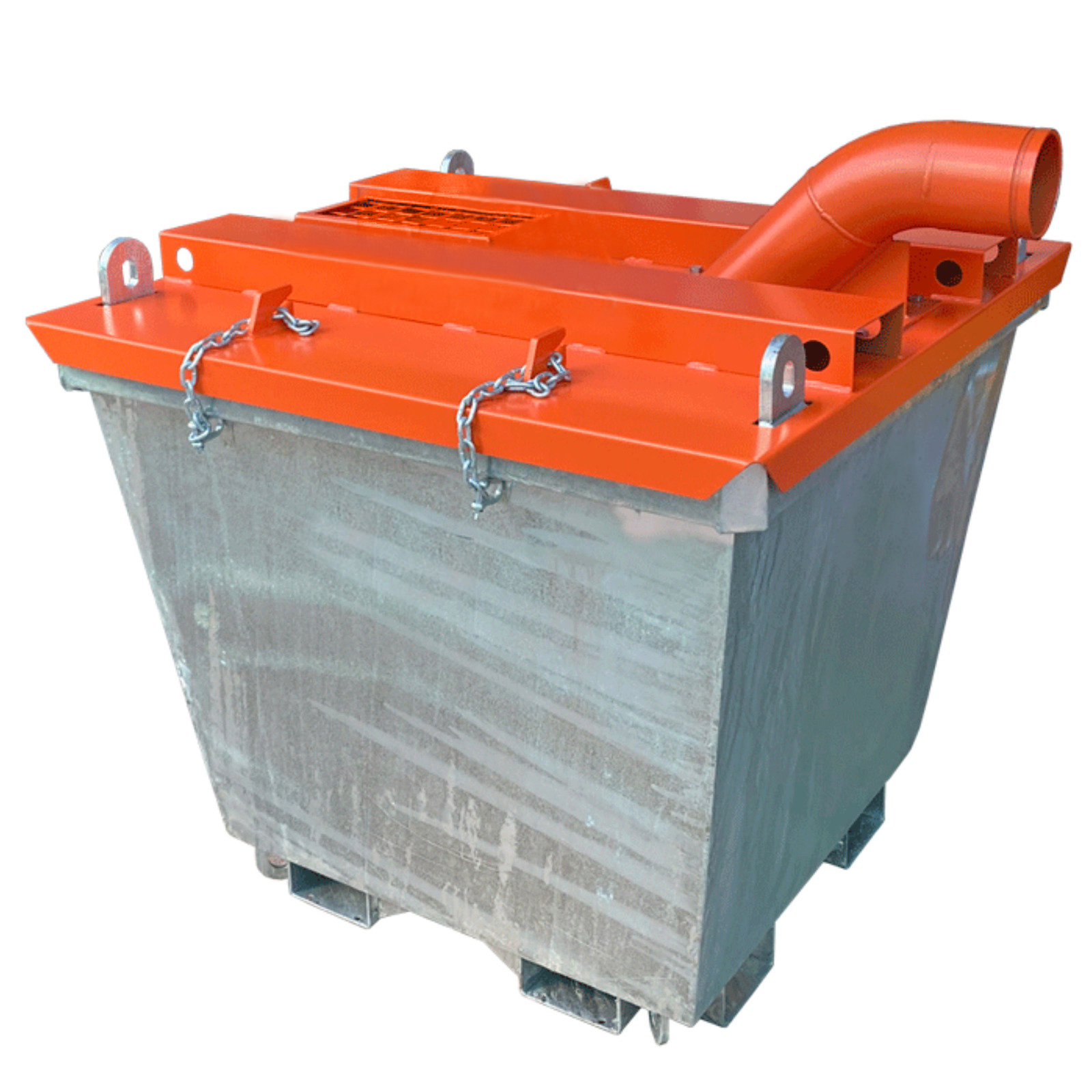

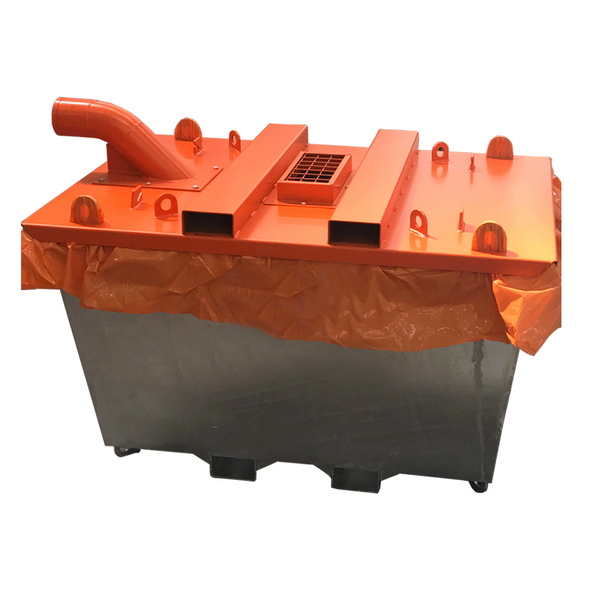

The CPC CONCRETE WASHOUT BIN is a safe, effective on-site solution for handling line cleans for boom and line concrete pumps. Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning. Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste. Disposable concrete washout plastic insert bags are available to make collection and disposal of waste easy, fast and cost effective.

Features:

Suitable for use with boom and line concrete pumps
Can safely be used with compressed air and water line cleans Easily removable exhaust air vent for sponge recovery
Lid is fitted with crane lugs and fork pockets for easy fit up and removal
Lid is secured to bin by safety chains in 4 points
Bin is fitted with crane lugs for both lifting and upending load and 4-way entry fork pockets
Multiple bins can be nested for storage and transport when not in use
125mm NB waste intake pipe for quick and safe connection
Optional reducers available to suit 100/80/50mm pipelines
Paint/Galvanised finish

Download PDF Brochure

Ask a Question

Product Description

Suitable for use with boom and line concrete pumps
Can safely be used with compressed air and water line cleans Easily removable exhaust air vent for sponge recovery
Lid is fitted with crane lugs and fork pockets for easy fit up and removal
Lid is secured to bin by safety chains in 4 points
Bin is fitted with crane lugs for both lifting and upending load and 4-way entry fork pockets
Multiple bins can be nested for storage and transport when not in use
125mm NB waste intake pipe for quick and safe connection
Optional reducers available to suit 100/80/50mm pipelines
Paint/Galvanised finish

View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image	Description	Code	Price Each	Order Quantity	Availability
2T Concrete Washout Bin - 0.85cu.m Product Code: CPC11 -	2T Concrete Washout Bin - 0.85cu.m	CPC11 View Details 2T Concrete Washout Bin - 0.85cu.m Product Code: CPC11 -	$2,370.00 max - 2 - min 1	- + In Stock	In Stock
CPC Concrete Washout Bin - WLL 2000KG 1.3cu.m Product Code: CPC17 -	CPC Concrete Washout Bin - WLL 2000KG 1.3cu.m	CPC17 View Details CPC Concrete Washout Bin - WLL 2000KG 1.3cu.m Product Code: CPC17 -	APPROX. 7-10 DAY LEAD TIME ON THIS ITEM $3,330.00 max - 2 - min 1	- + APPROX. 7-10 DAY LEAD TIME ON THIS ITEM	APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
CPC Concrete Washout Bin - WLL 2000KG 2.5cu.m Product Code: CPC23 -	CPC Concrete Washout Bin - WLL 2000KG 2.5cu.m	CPC23 View Details CPC Concrete Washout Bin - WLL 2000KG 2.5cu.m Product Code: CPC23 -	$4,900.00 max - 2 - min 1	- + In Stock	In Stock
CPC Concrete Washout Bin - WLL 5000KG 2.4cu.m Product Code: CPC23H -	CPC Concrete Washout Bin - WLL 5000KG 2.4cu.m	CPC23H View Details CPC Concrete Washout Bin - WLL 5000KG 2.4cu.m Product Code: CPC23H -	APPROX. 7-10 DAY LEAD TIME ON THIS ITEM $6,740.00 max - 2 - min 1	- + APPROX. 7-10 DAY LEAD TIME ON THIS ITEM	APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

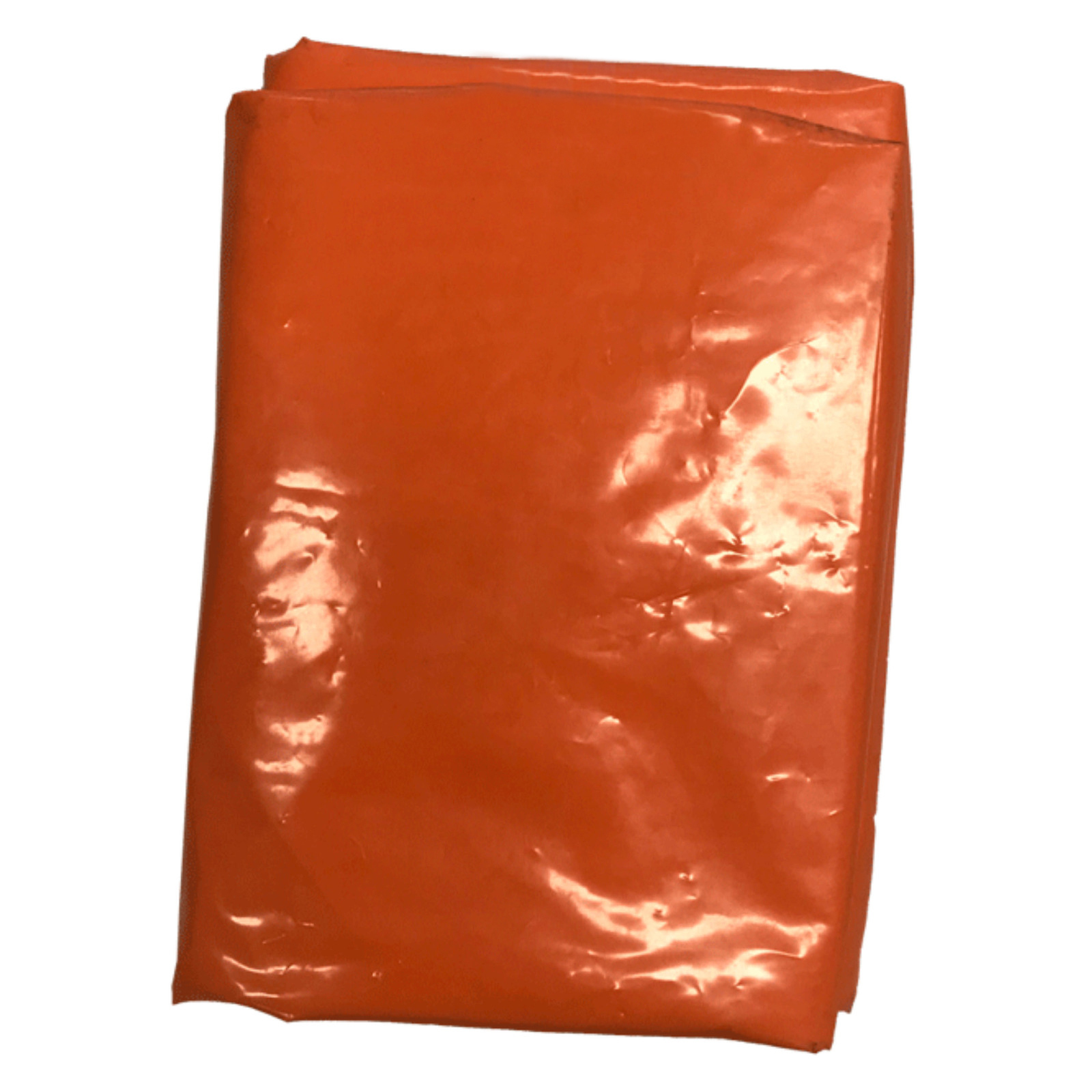

Disposable Plastic Liner for CPC17 Product Code: CPC17DPL -	Disposable Plastic Liner for CPC17	CPC17DPL View Details Disposable Plastic Liner for CPC17 Product Code: CPC17DPL -	$35.00 max - 2 - min 1	- + In Stock	In Stock
Disposable Plastic Liner for CPC23/23H Product Code: CPC23DPL -	Disposable Plastic Liner for CPC23/23H	CPC23DPL View Details Disposable Plastic Liner for CPC23/23H Product Code: CPC23DPL -	$30.00 max - 2 - min 1	- + In Stock	In Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST

Subtotal:

$0.00

Add Selection to Cart

*Shipping cost will be available at the cart

Product Dimensions / Specifications

Suitable for use with boom and line concrete pumps
Can safely be used with compressed air and water line cleans Easily removable exhaust air vent for sponge recovery
Lid is fitted with crane lugs and fork pockets for easy fit up and removal
Lid is secured to bin by safety chains in 4 points
Bin is fitted with crane lugs for both lifting and upending load and 4-way entry fork pockets
Multiple bins can be nested for storage and transport when not in use
125mm NB waste intake pipe for quick and safe connection
Optional reducers available to suit 100/80/50mm pipelines
Paint/Galvanised finish

Code	Bin WLL	Capacity	Overall Dimensions	Unit Weight
CPC11	2000kg	0.85 cu.m	1290x1180x1350mm	242kg
CPC17	2000kg	1.3 cu.m	1830x1185x1280mm	380kg
CPC23	2000kg	2.5cu.m	2340x1545x1316mm	600kg
CPC23H	5000kg	2.4cu.m	2340x1540x1324mm	850kg
