CQM Concrete Pipe Lifter
Click on image above to enlarge

Lifting Equipment

CQM Concrete Pipe Lifter


View Pricing & Order

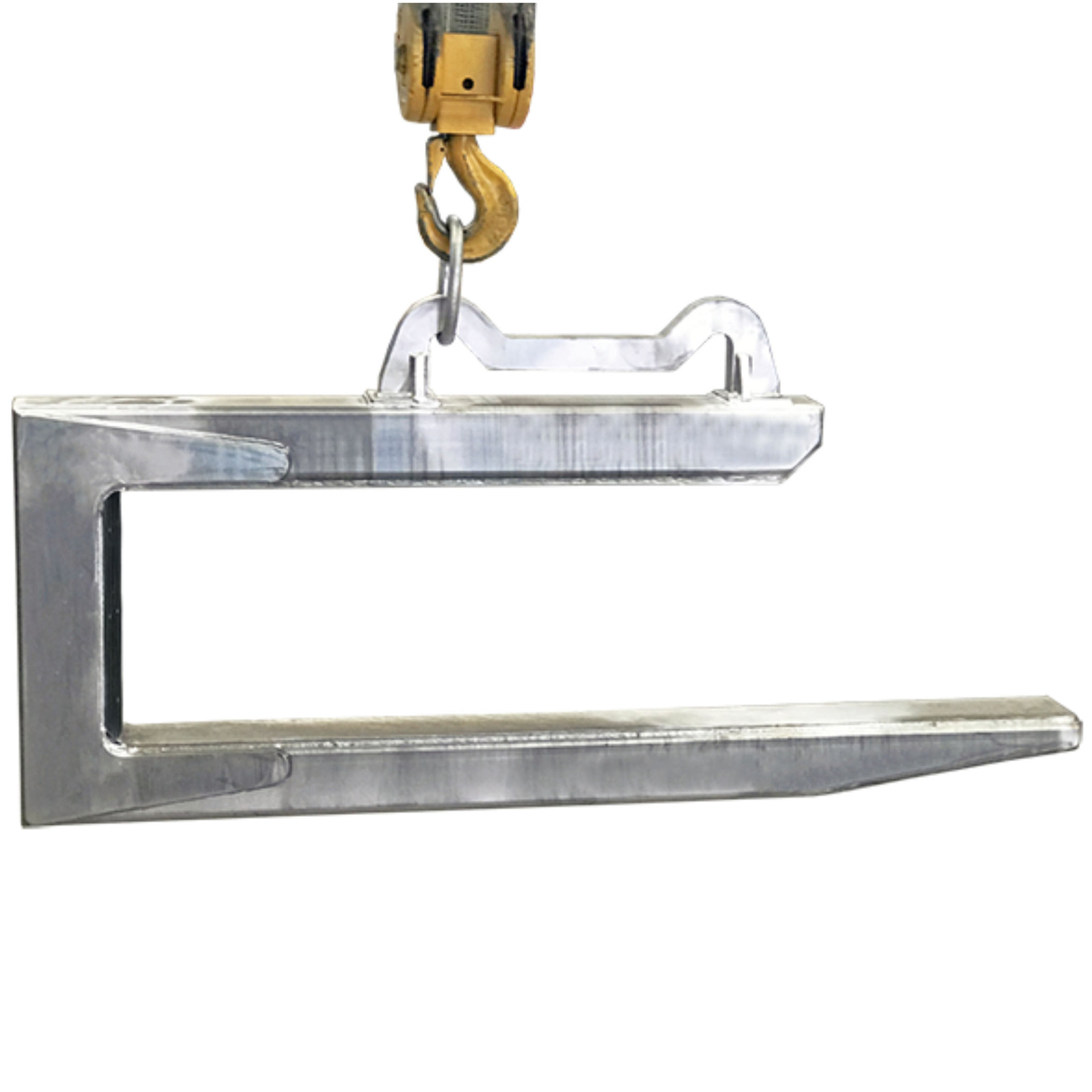

The CQM Concrete Pipe Lifters are designed to safely handle concrete pipe sections or similar by overhead crane.

FEATURES:

  • For use with concrete pipes
  • Lifts, transports and places pipe sections with a length of 2450mm
  • Load is balanced by moving the lifting ring between the loaded or unloaded positions
  • Rubber buffer pads are fitted to prevent damage to the pipe
  • Zinc finish
  • Load Centre: 1200mm
  • Inside Clearance: 500mm



Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

The CQM Concrete Pipe Lifters are designed to safely handle concrete pipe sections or similar by overhead crane.

FEATURES:

  • For use with concrete pipes
  • Lifts, transports and places pipe sections with a length of 2450mm
  • Load is balanced by moving the lifting ring between the loaded or unloaded positions
  • Rubber buffer pads are fitted to prevent damage to the pipe
  • Zinc finish
  • Load Centre: 1200mm
  • Inside Clearance: 500mm



View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability
CQM125 Concrete Pipe Lifter

CQM125 Concrete Pipe Lifter

Product Code: CQM125

-

 CQM125 Concrete Pipe Lifter CQM125
View Details

$2,490.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
CQM150 Concrete Pipe Lifter

CQM150 Concrete Pipe Lifter

Product Code: CQM150

-

 CQM150 Concrete Pipe Lifter CQM150
View Details

$3,200.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

The CQM Concrete Pipe Lifters are designed to safely handle concrete pipe sections or similar by overhead crane.

FEATURES:

  • For use with concrete pipes
  • Lifts, transports and places pipe sections with a length of 2450mm
  • Load is balanced by moving the lifting ring between the loaded or unloaded positions
  • Rubber buffer pads are fitted to prevent damage to the pipe
  • Zinc finish
  • Load Centre: 1200mm
  • Inside Clearance: 500mm




Code
Working Load Limit
Clear Hook Arm Length
Unit Weight
CQM125 1250kg 1985mm 160kg
CQM150 2500kg 2000mm 250kg




Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

CQM Concrete Pipe Lifter is engineered for the efficient lifting, transporting, and placing of concrete pipe sections with a length of up to 2450mm. This versatile tool enhances productivity on construction sites by facilitating the smooth handling of heavy pipe sections. Featuring a movable lifting ring, the lifter ensures balanced load distribution by allowing adjustment between loaded and unloaded positions. Rubber buffer pads are included to protect the pipe from damage during handling, ensuring both the safety of the equipment and the integrity of the pipe. With a load centre of 1200mm and an inside clearance of 500mm, the CQM Concrete Pipe Lifter accommodates a range of pipe sizes while maintaining stability and control. The lifter's durable zinc finish provides resistance to corrosion and wear, making it suitable for use in various environmental conditions. This robust and reliable equipment is an essential addition to any construction project involving concrete pipe installation.
