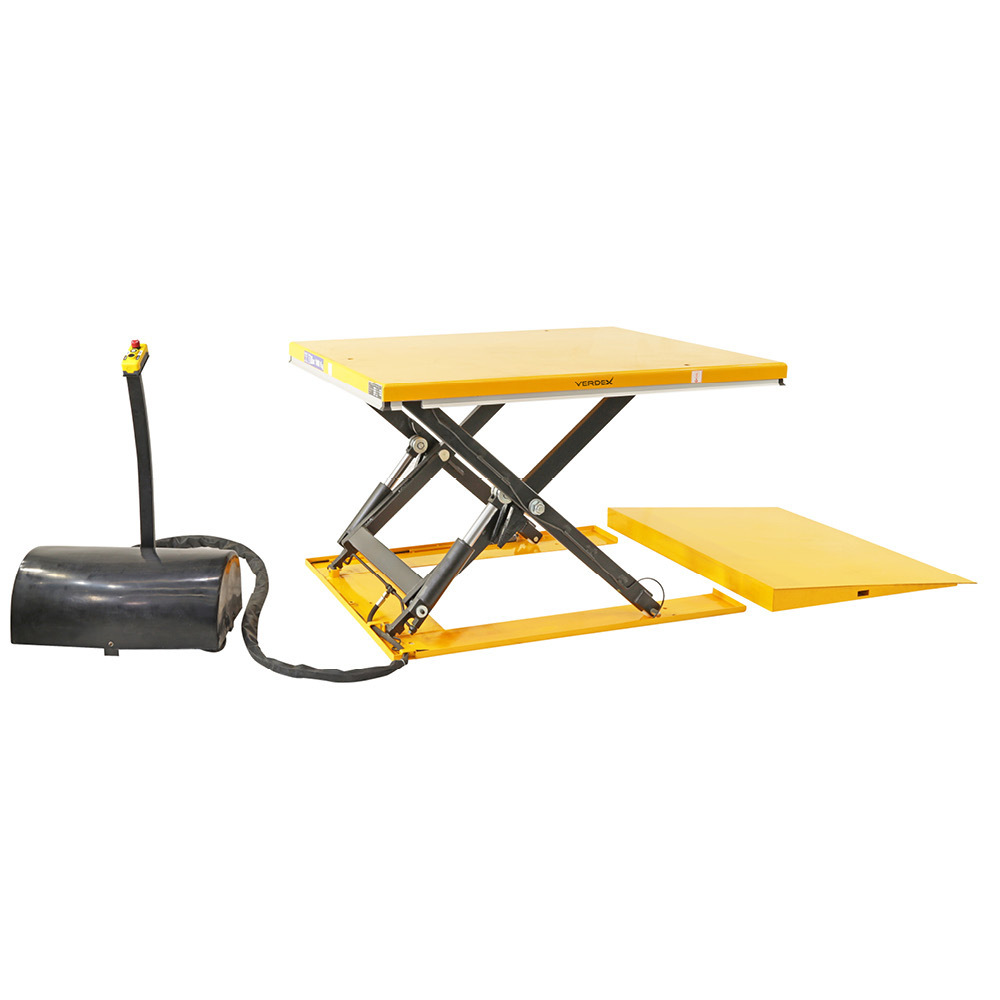

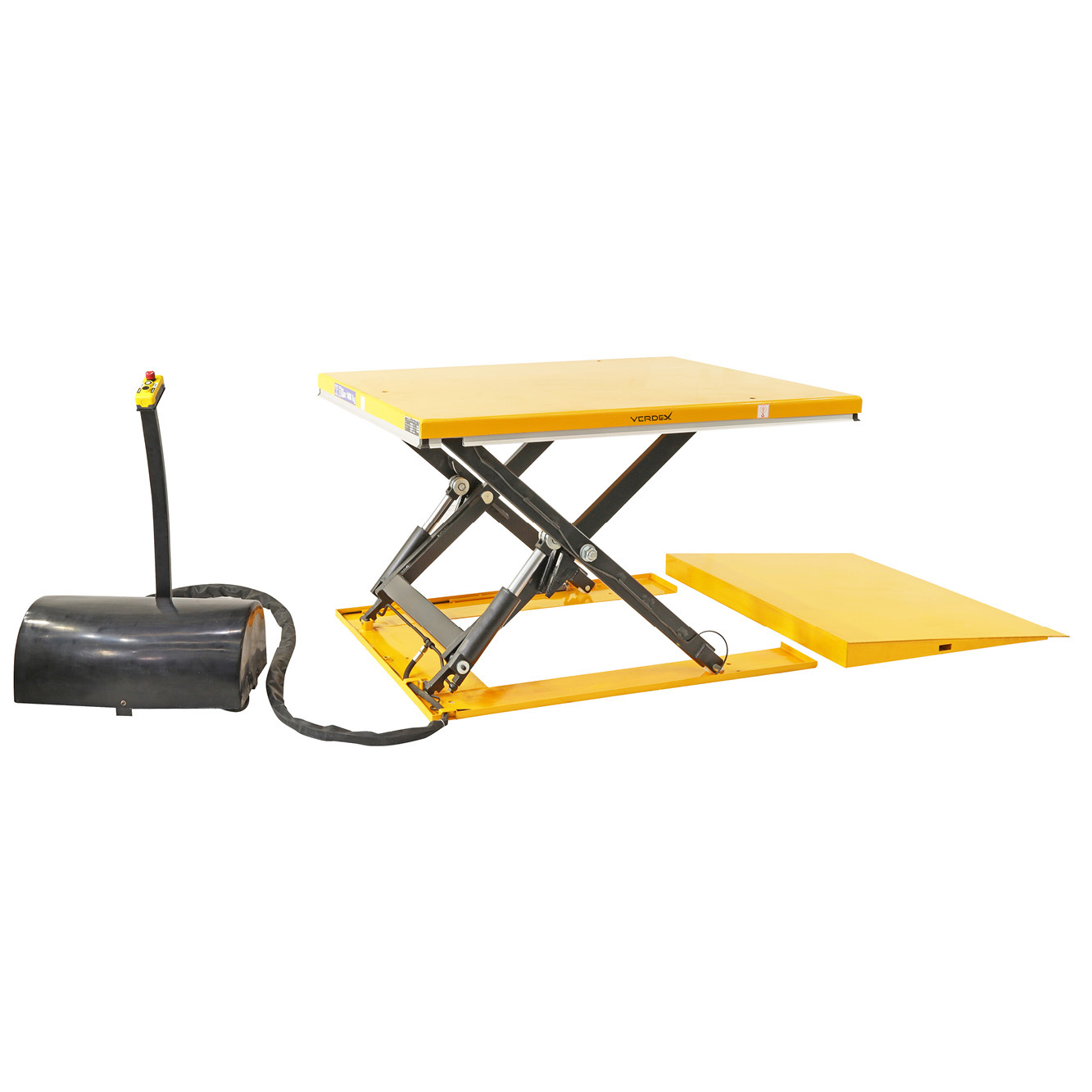

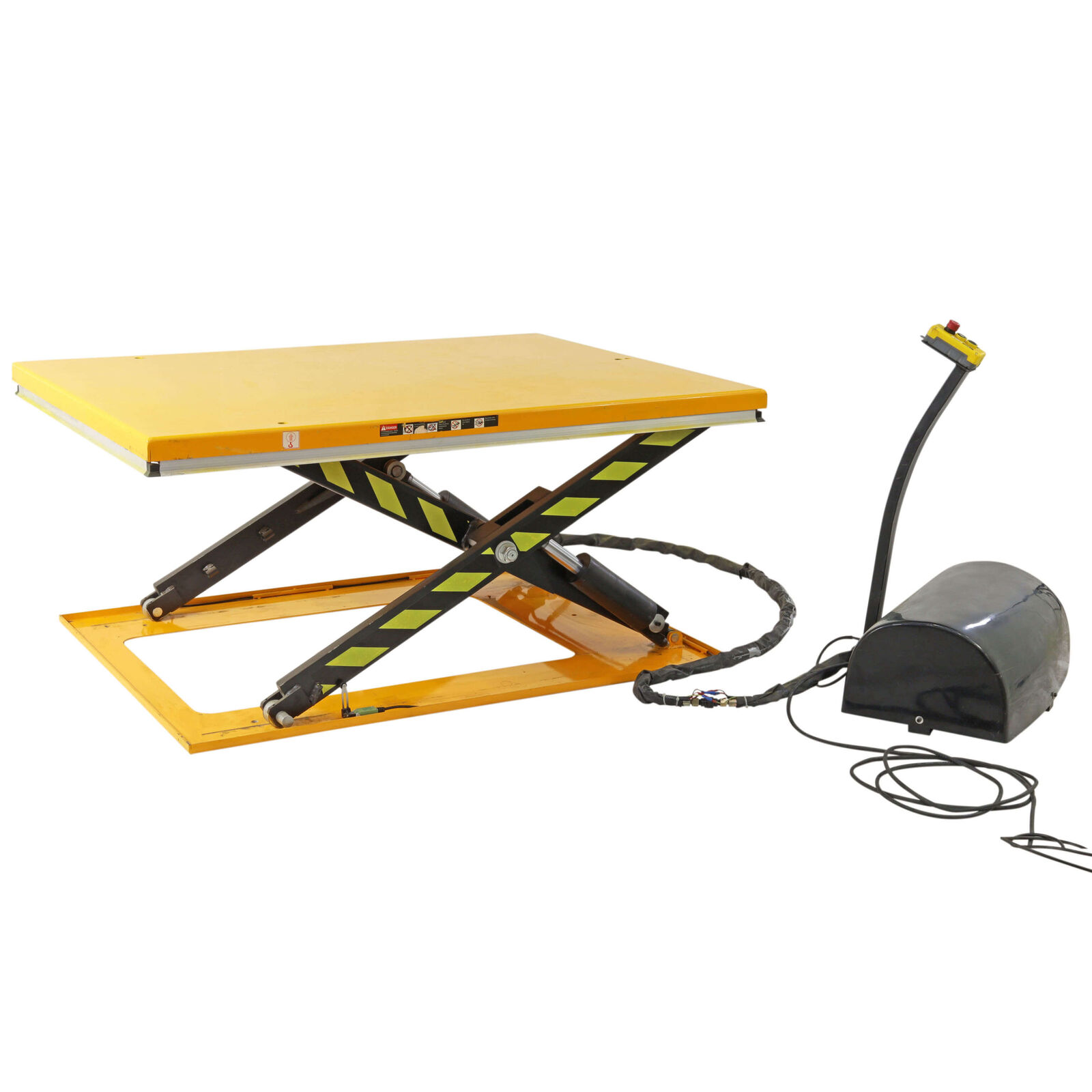

Low Profile Electric Pallet Lift Tables

Click on image above to enlarge

Scissor Lift Trolleys and Tables

View Pricing & Order

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
Powder coated finish
Low clearance - only 85mm
Supplied with entry ramp to allow pallet truck entry
Can be supplied with optional rotator ring/turntable if required

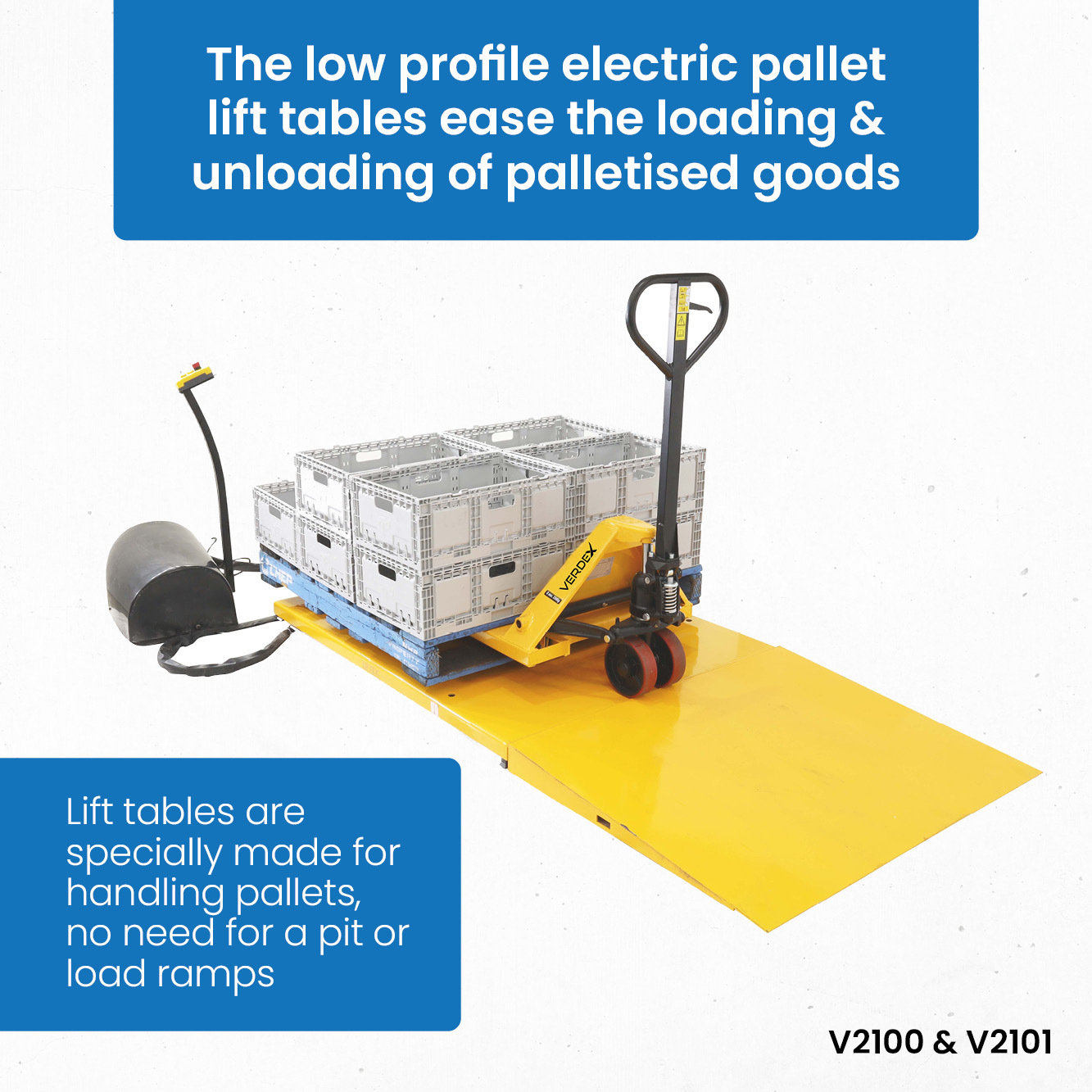

Tables are specially made for handling pallets, no need for a pit or load ramps

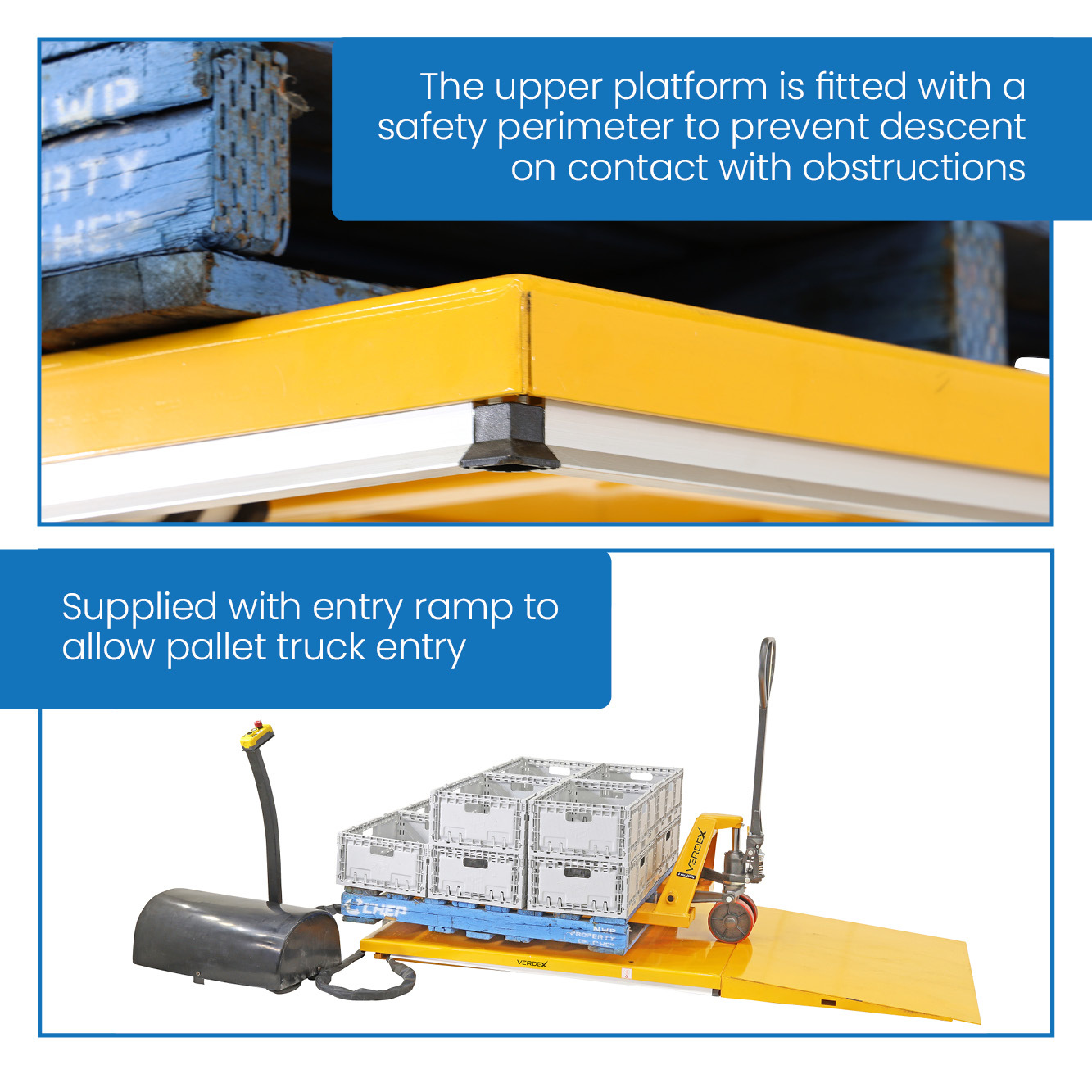

Upper platform fitted with safety perimeter to prevent descent on contact with obstructions

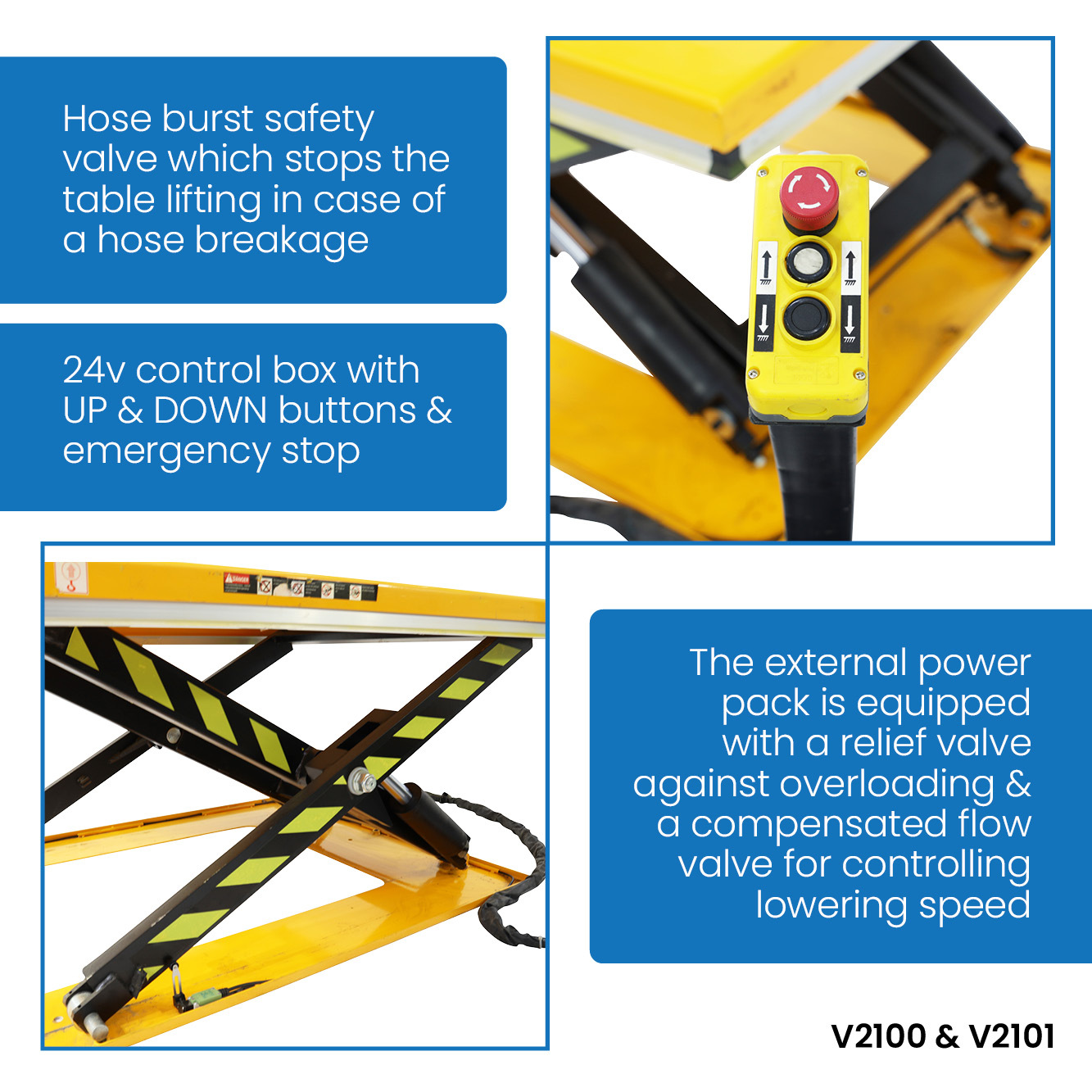

24v control box with UP and DOWN buttons and emergency stop
External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
Power Supply: 240v (3 phase 415v availabe if required)
Hose burst safety valve to stop the lift table lowering in case of hose breakage
Removable lifting bolts to facilitate handling and installation of the lift table
Oil-less bushings on pivot points

To purchase the optional Rotator Ring Turntable, click here

Download PDF Brochure

Ask a Question

Product Description

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
Powder coated finish
Low clearance - only 85mm
Supplied with entry ramp to allow pallet truck entry
Can be supplied with optional rotator ring/turntable if required
Tables are specially made for handling pallets, no need for a pit or load ramps
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
24v control box with UP and DOWN buttons and emergency stop
External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
Power Supply: 240v (3 phase 415v availabe if required)
Hose burst safety valve to stop the lift table lowering in case of hose breakage
Removable lifting bolts to facilitate handling and installation of the lift table
Oil-less bushings on pivot points

To purchase the optional Rotator Ring Turntable, click here

View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image	Description	Code	Price Each	Order Quantity	Availability

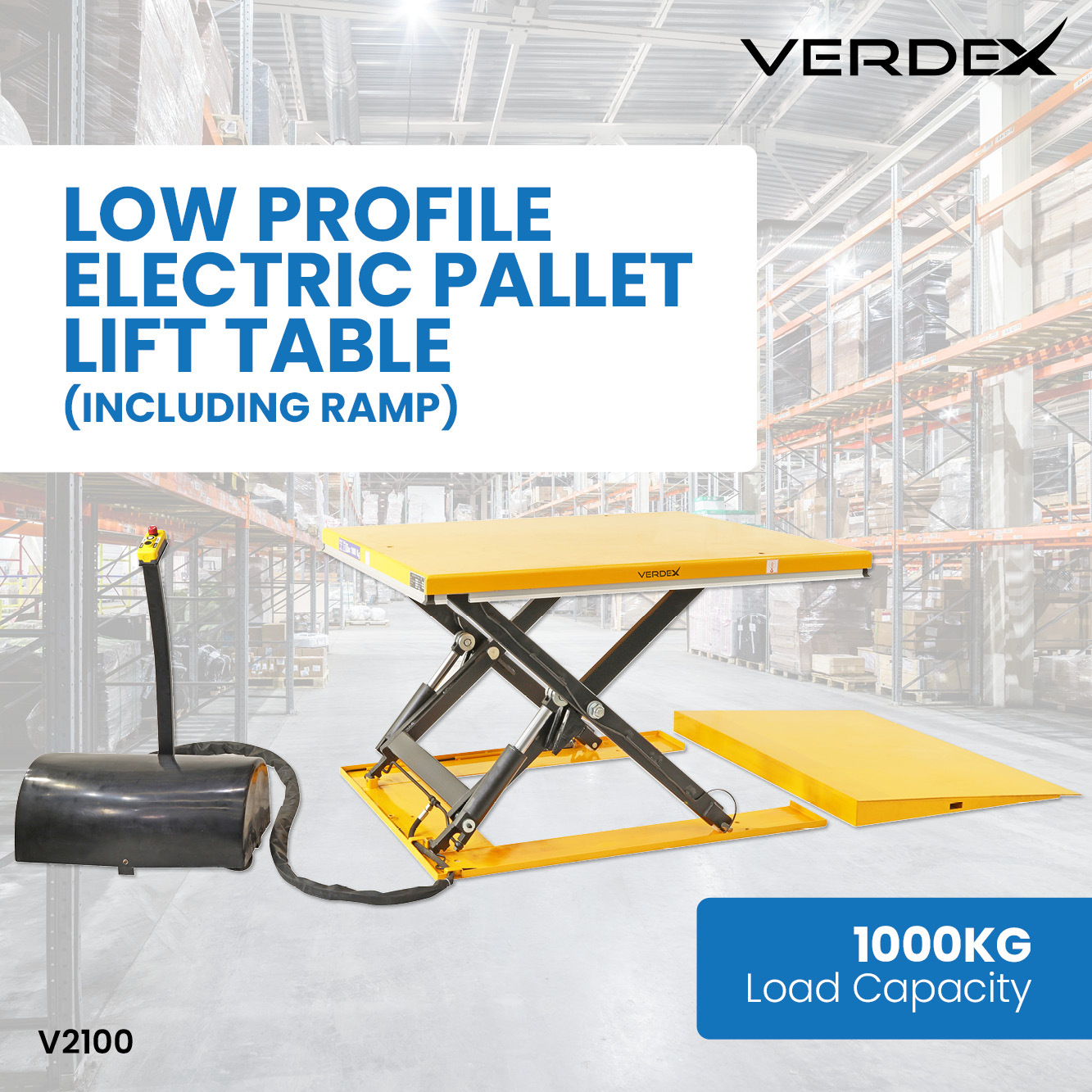

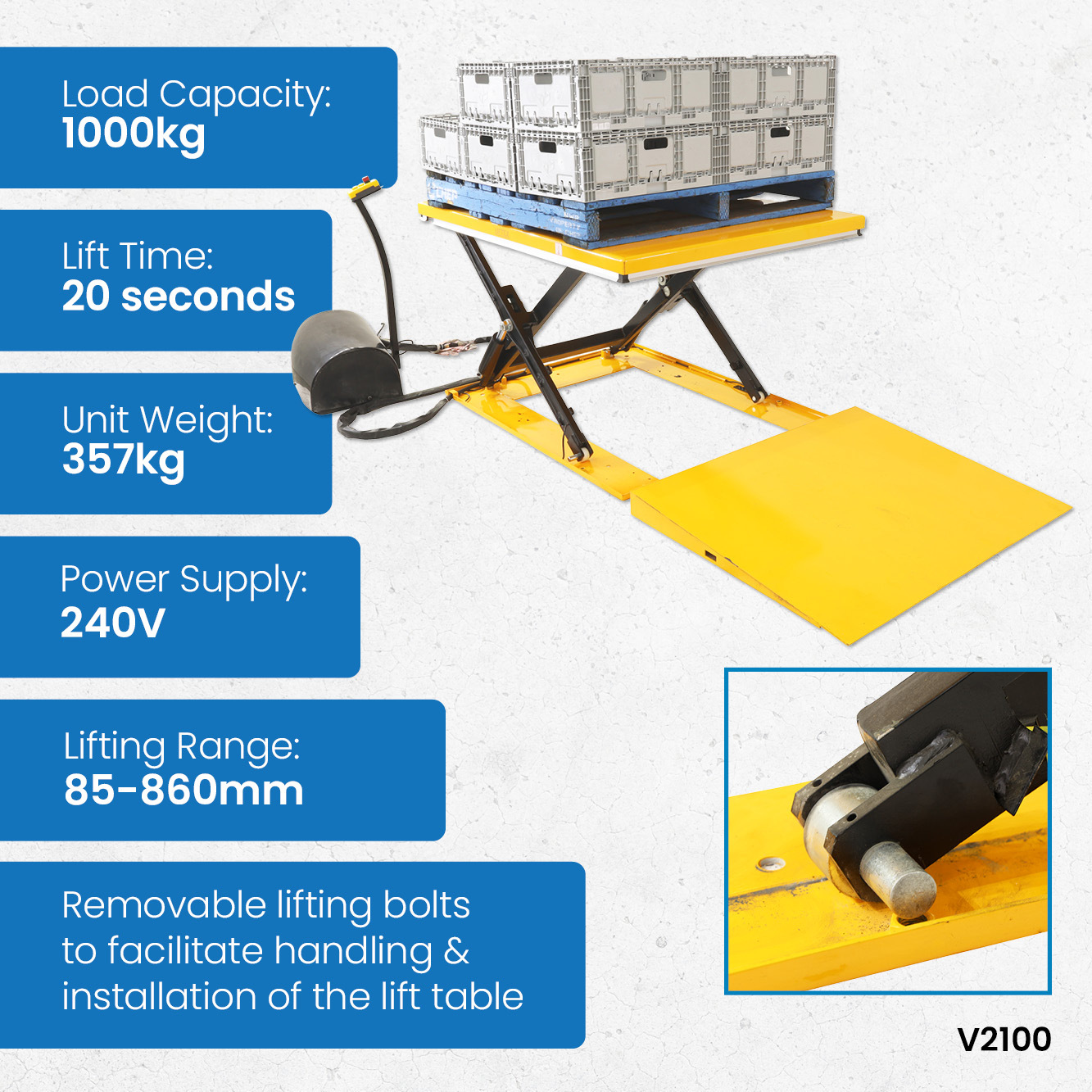

Low Profile Lift Table (including ramp) 1000kg Product Code: V2100 Powder coated yellow finish Low clearance - only 85mm Power Supply: 240v (3 phase 415v availabe if required) Load Capacity: 1000kg Platform Size (LxW): 1450x1140mm Lifting Range: 85-860mm Lift Time: 20 seconds Unit Weight: 357kg	Low Profile Lift Table (including ramp) 1000kg	V2100 View Details Low Profile Lift Table (including ramp) 1000kg Product Code: V2100 Powder coated yellow finish Low clearance - only 85mm Power Supply: 240v (3 phase 415v availabe if required) Load Capacity: 1000kg Platform Size (LxW): 1450x1140mm Lifting Range: 85-860mm Lift Time: 20 seconds Unit Weight: 357kg	$4,890.00 max - 2 - min 1	- + In Stock	In Stock

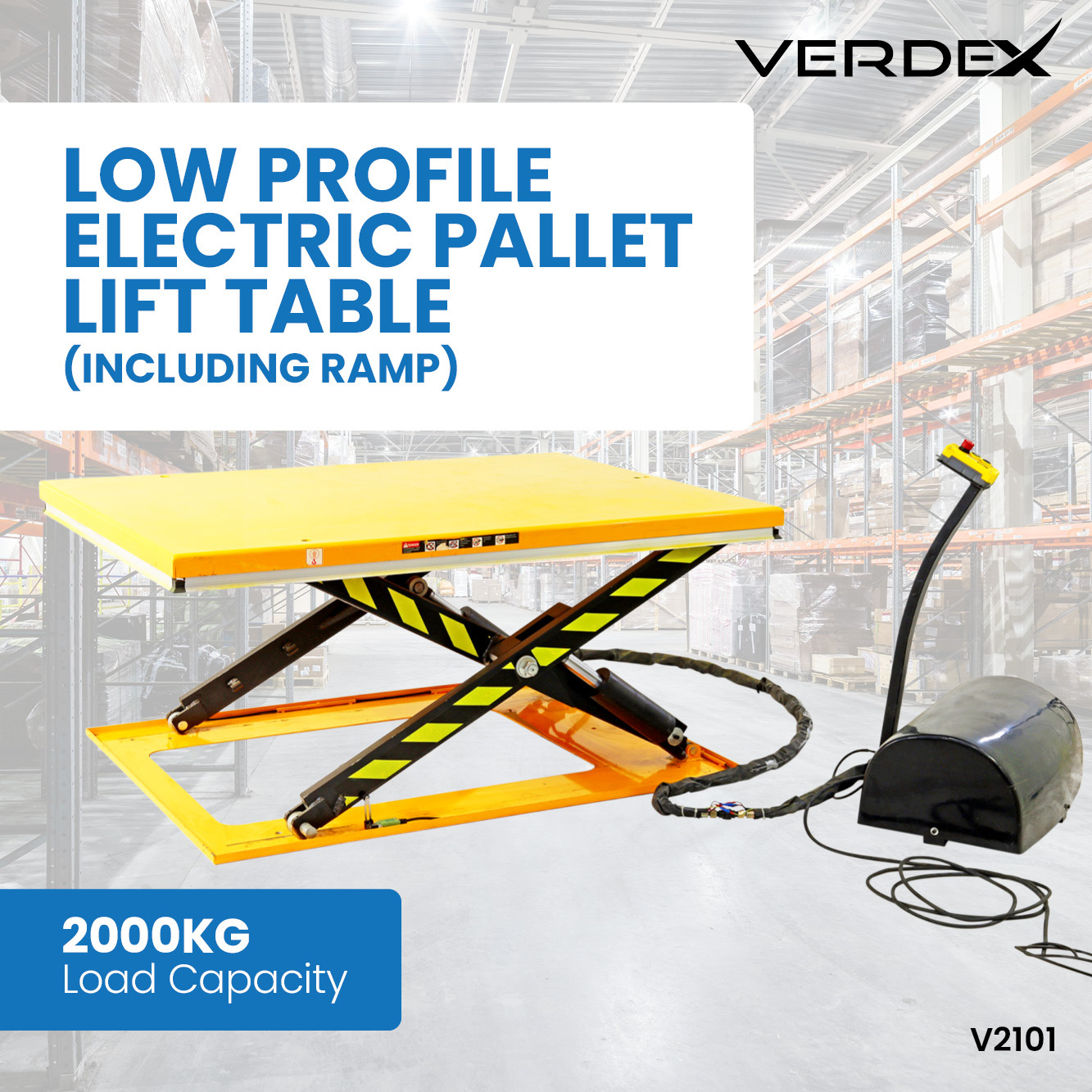

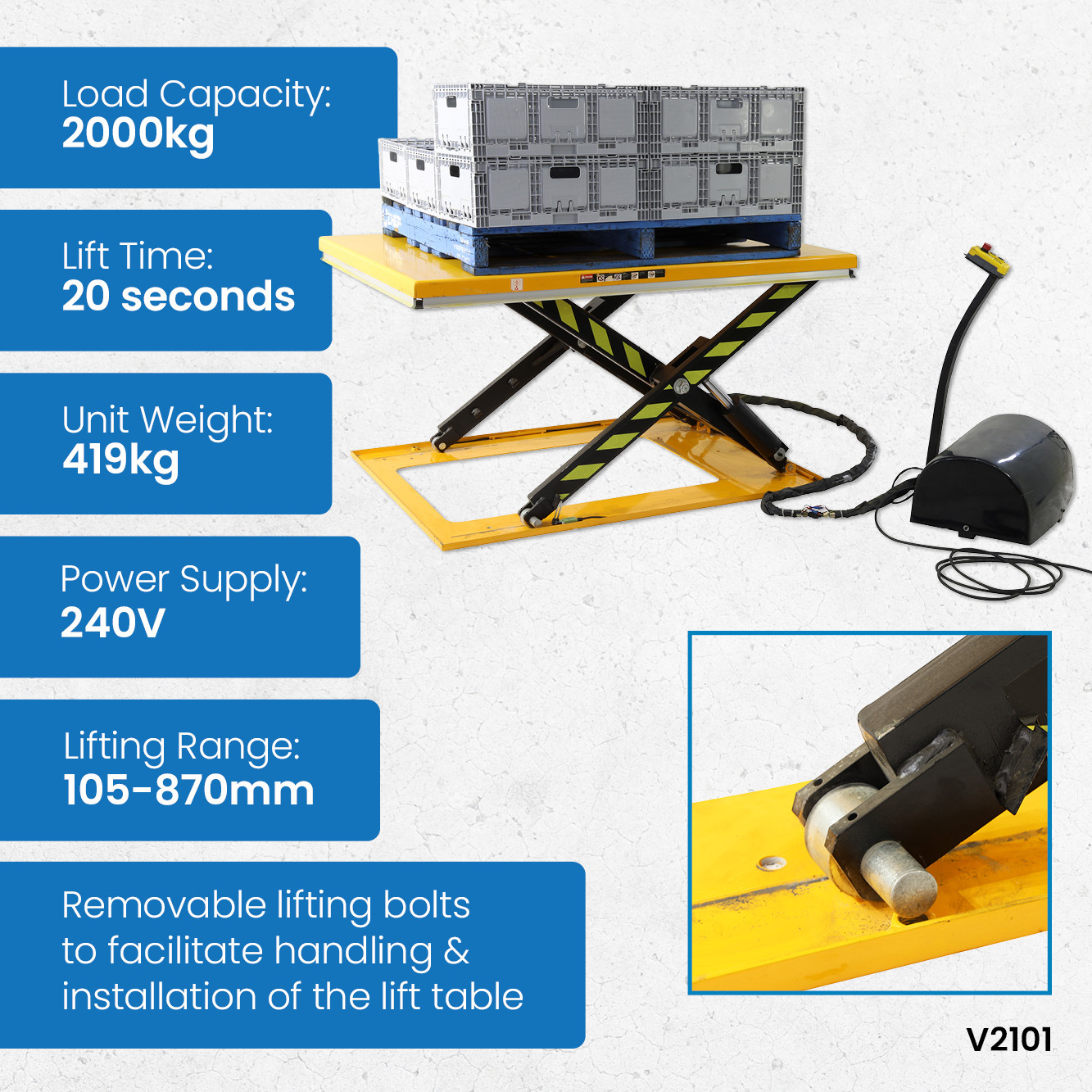

Low Profile Lift Table (including ramp) 2000kg Product Code: V2101 Powder coated yellow finish Low clearance - only 85mm Power Supply: 240v (3 phase 415v availabe if required) Load Capacity: 2000kg Platform Size (LxW): 1600x1200mm Lifting Range: 105-870mm Lift Time: 20 seconds Unit Weight: 419kg	Low Profile Lift Table (including ramp) 2000kg	V2101 View Details Low Profile Lift Table (including ramp) 2000kg Product Code: V2101 Powder coated yellow finish Low clearance - only 85mm Power Supply: 240v (3 phase 415v availabe if required) Load Capacity: 2000kg Platform Size (LxW): 1600x1200mm Lifting Range: 105-870mm Lift Time: 20 seconds Unit Weight: 419kg	$6,654.00 max - 2 - min 1	- + In Stock	In Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST

Subtotal:

$0.00

Add Selection to Cart

*Shipping cost will be available at the cart

Product Dimensions / Specifications

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
Powder coated finish
Low clearance - only 85mm
Supplied with entry ramp to allow pallet truck entry
Can be supplied with optional rotator ring/turntable if required
Tables are specially made for handling pallets, no need for a pit or load ramps
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
24v control box with UP and DOWN buttons and emergency stop
External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
Power Supply: 240v (3 phase 415v availabe if required)
Hose burst safety valve to stop the lift table lowering in case of hose breakage
Removable lifting bolts to facilitate handling and installation of the lift table
Oil-less bushings on pivot points

To purchase the optional Rotator Ring Turntable, click here

Code	Load Capacity	Platform Size (LxW)	Lifting Range	Lift Time	Unit Weight

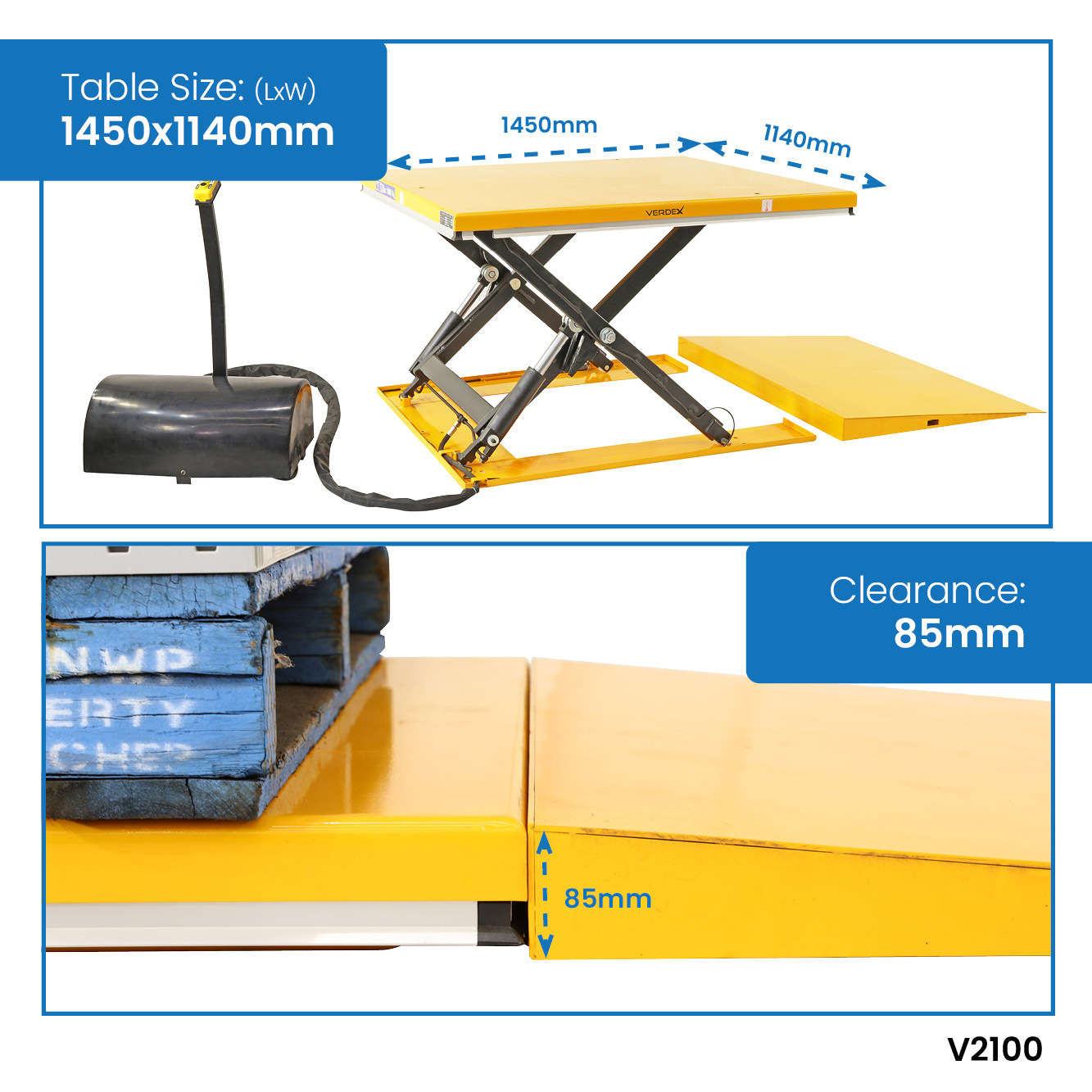

V2100	1000kg	1450x1140mm	85-860mm	20secs	357kg

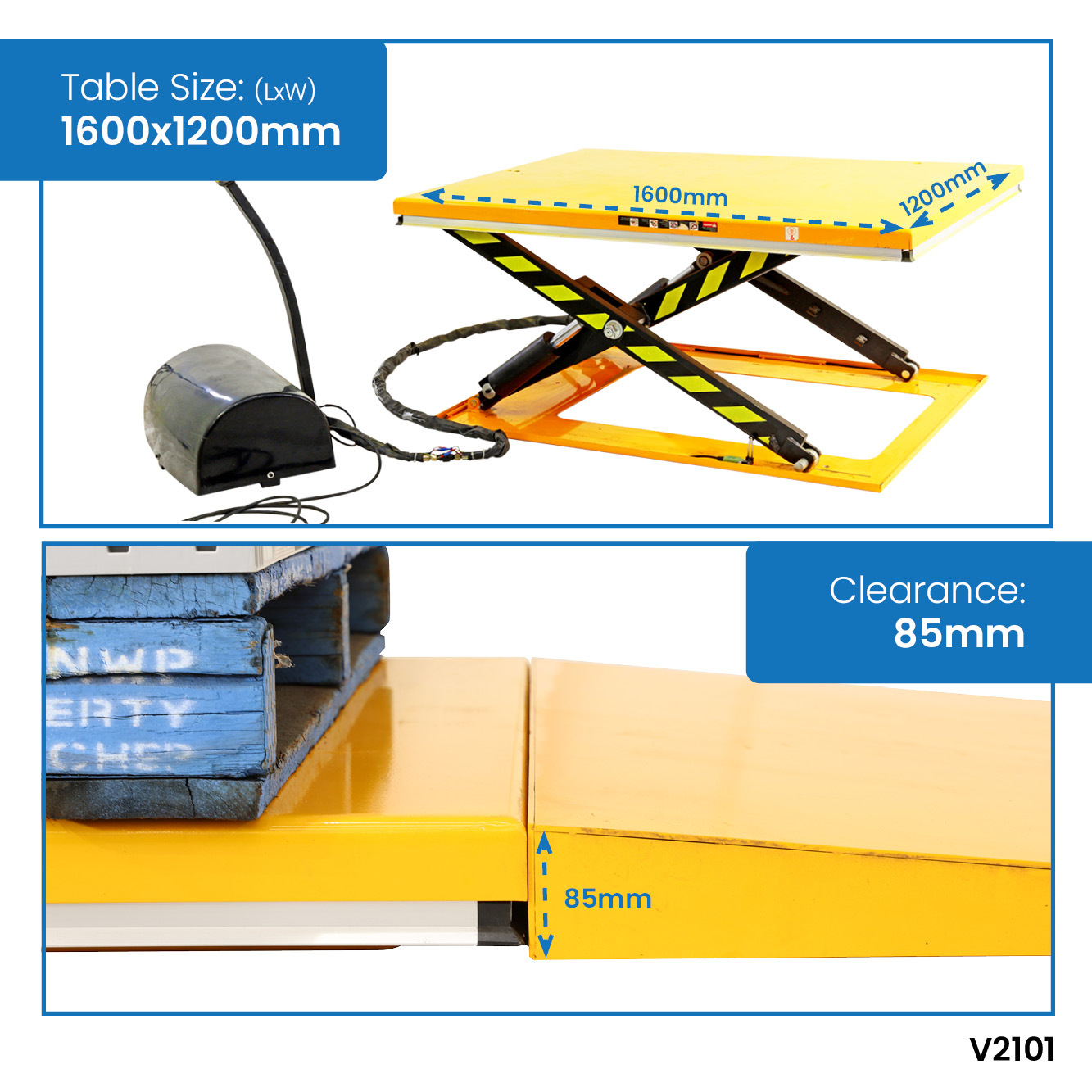

V2101	2000kg	1600x1200mm	105-870mm	20secs	419kg
