Concrete Equipment

Stand-up Concrete Kibble


View Pricing & Order


The CKV Stand-up Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.  Fitted with a hydraulic power pack, this heavy-duty, high volume kibble allows the operator wireless remote control of concrete pours at a safe distance.

SPECIFICATIONS:

  • Suits large scale concrete pours
  • Fitted hydraulic power pack eliminates the need to manually operate kibble

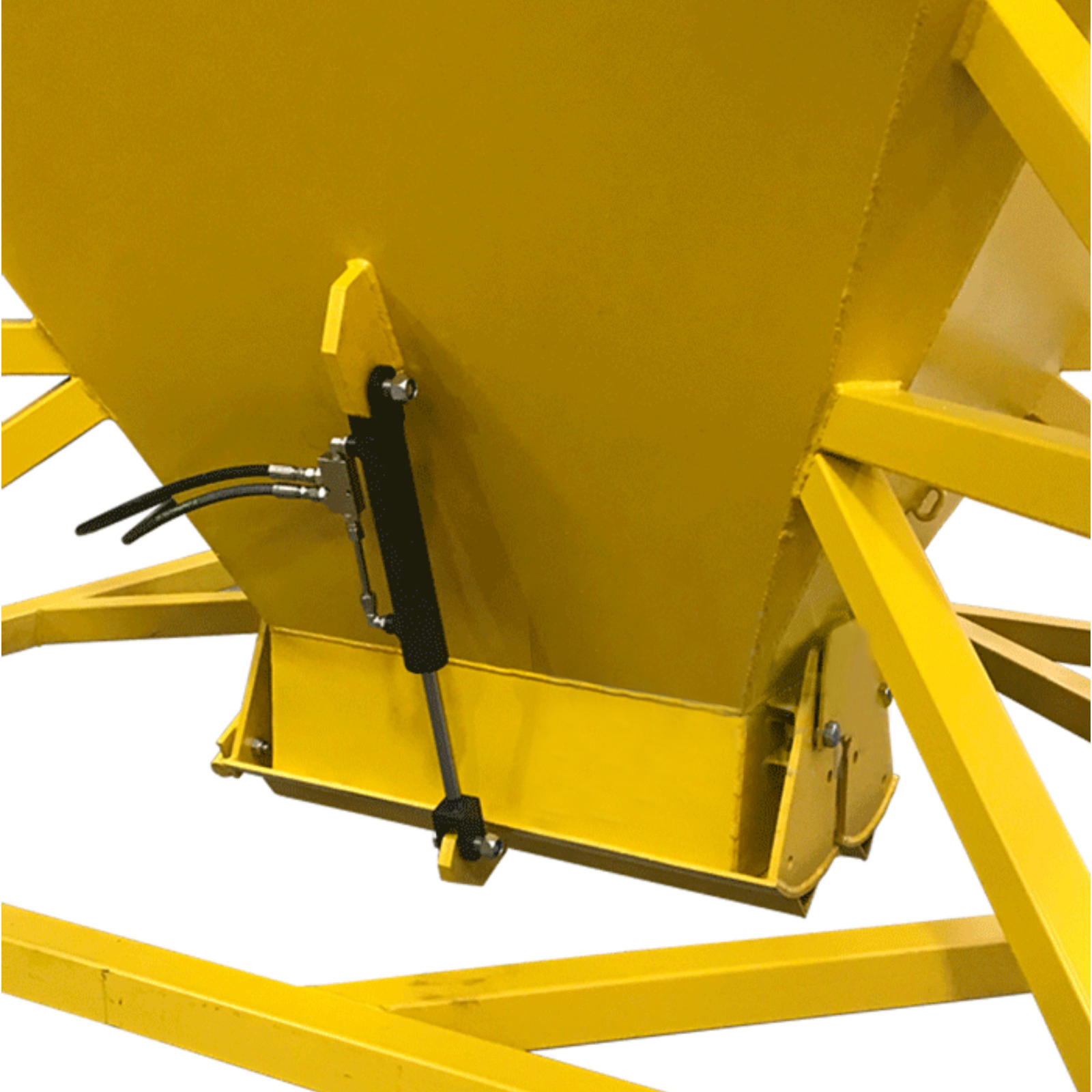

  • Fitted with a hydraulic operated 460 x 830mm clamshell gate
  • Fork pockets fitted for transport around the work site
  • Enamel paint finish
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description


The CKV Stand-up Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.  Fitted with a hydraulic power pack, this heavy-duty, high volume kibble allows the operator wireless remote control of concrete pours at a safe distance.

SPECIFICATIONS:

  • Suits large scale concrete pours
  • Fitted hydraulic power pack eliminates the need to manually operate kibble
  • Fitted with a hydraulic operated 460 x 830mm clamshell gate
  • Fork pockets fitted for transport around the work site
  • Enamel paint finish
View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

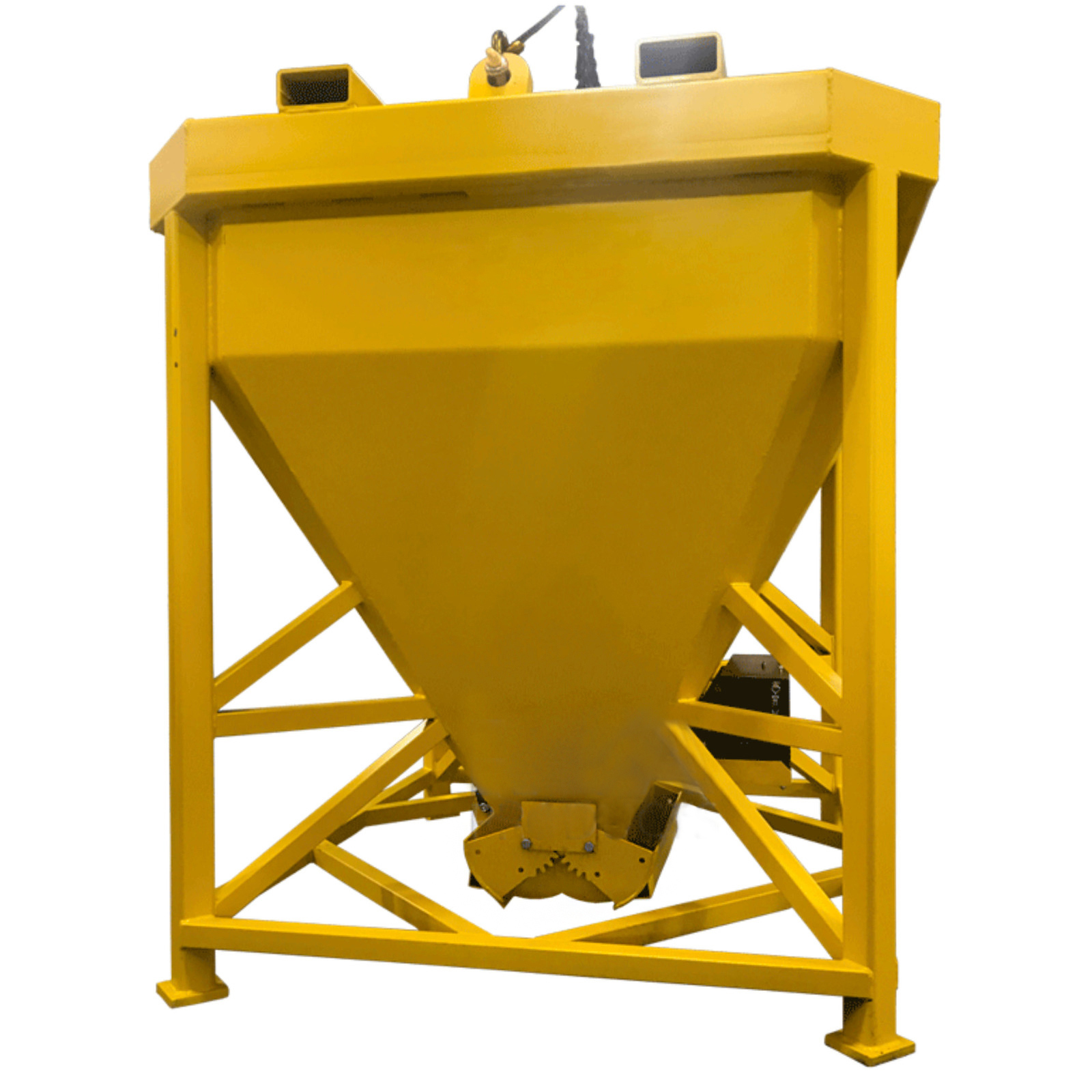

Standup Concrete Kibble 2.1cu.m

Standup Concrete Kibble 2.1cu.m

Product Code: CKV25

-

 Standup Concrete Kibble 2.1cu.m CKV25
View Details

$18,110.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

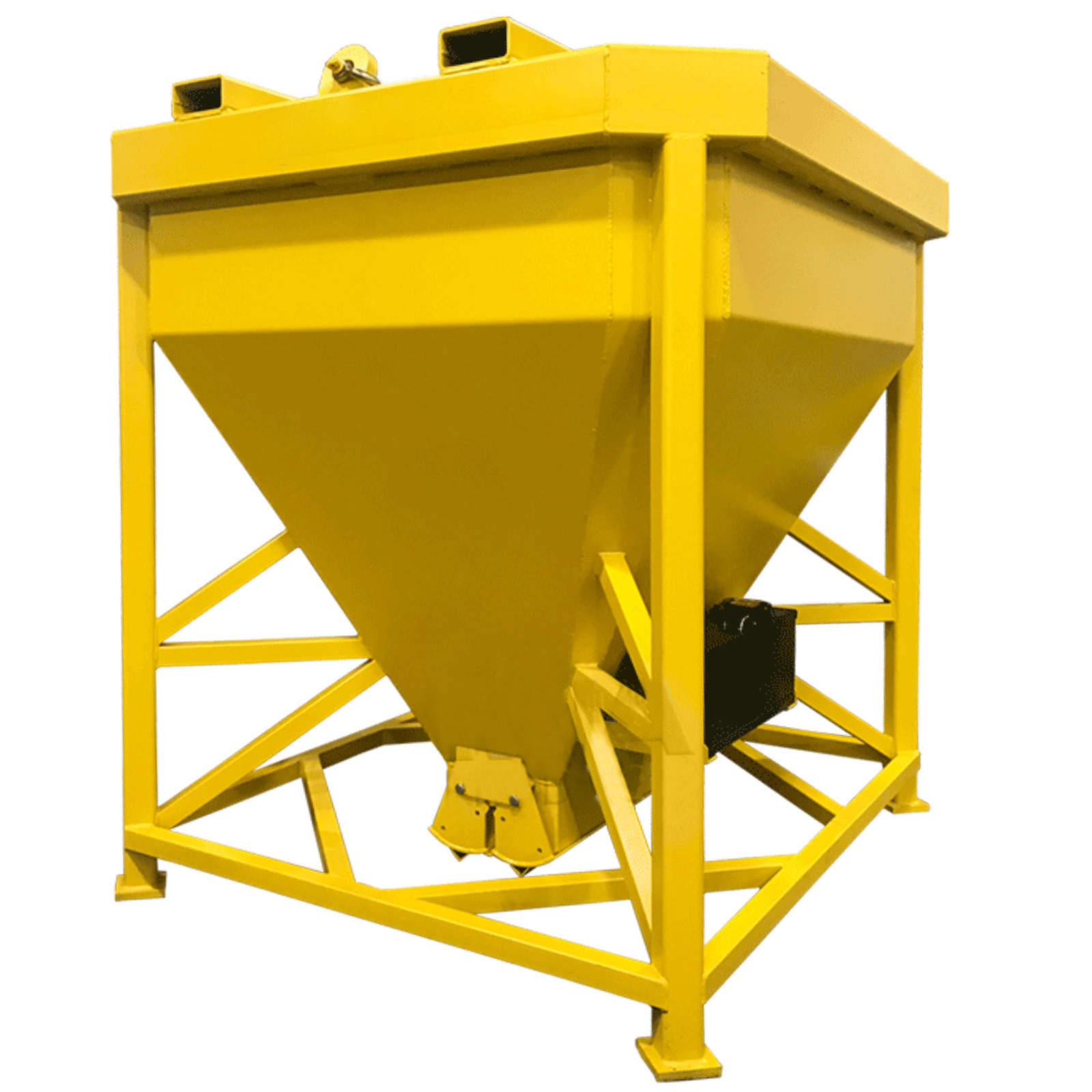

Standup Concrete Kibble 5.1cu.m

Standup Concrete Kibble 5.1cu.m

Product Code: CKV50

-

 Standup Concrete Kibble 5.1cu.m CKV50
View Details

$25,070.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications


The CKV Stand-up Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.  Fitted with a hydraulic power pack, this heavy-duty, high volume kibble allows the operator wireless remote control of concrete pours at a safe distance.

SPECIFICATIONS:

  • Suits large scale concrete pours
  • Fitted hydraulic power pack eliminates the need to manually operate kibble
  • Fitted with a hydraulic operated 460 x 830mm clamshell gate
  • Fork pockets fitted for transport around the work site
  • Enamel paint finish

Code
Volume Capacity
Working Load Limit
Dimensions (WxLxH)
Filling Height
Unit Weight
CKV25 2.1 6000 1995x1695x1820mm 1670mm 164kg
CKV50 5.1 12,000 2415x2115x2450mm 2270mm 188kg
