Product Dimensions / Specifications

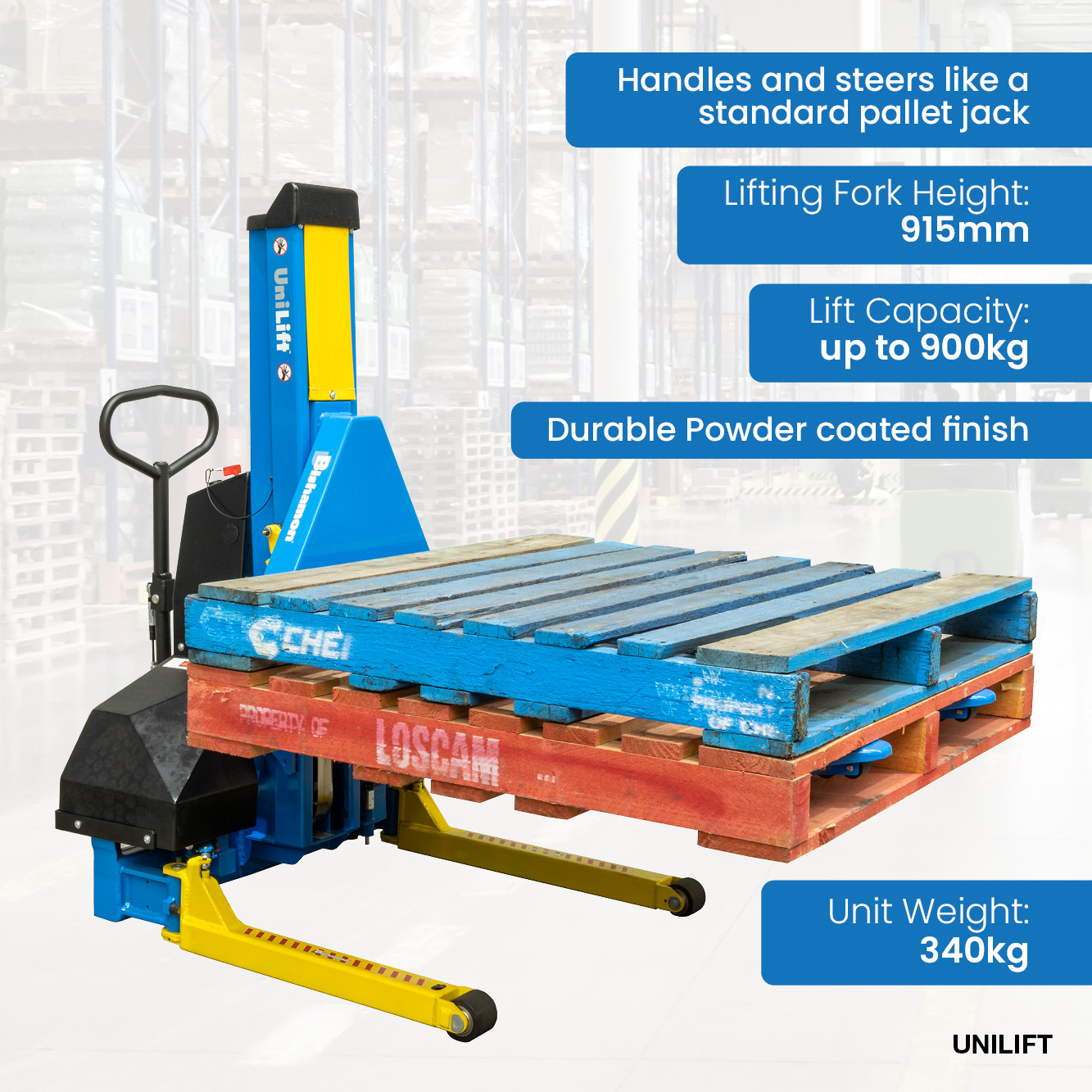

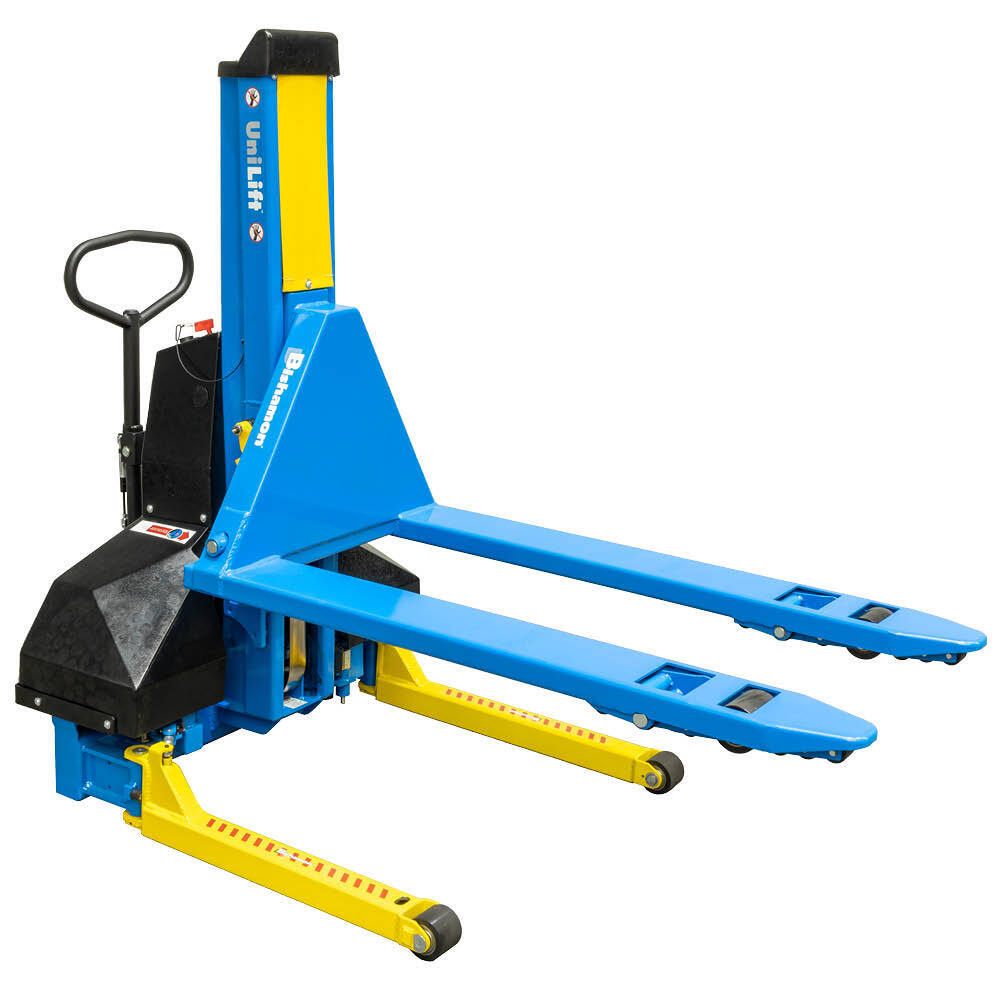

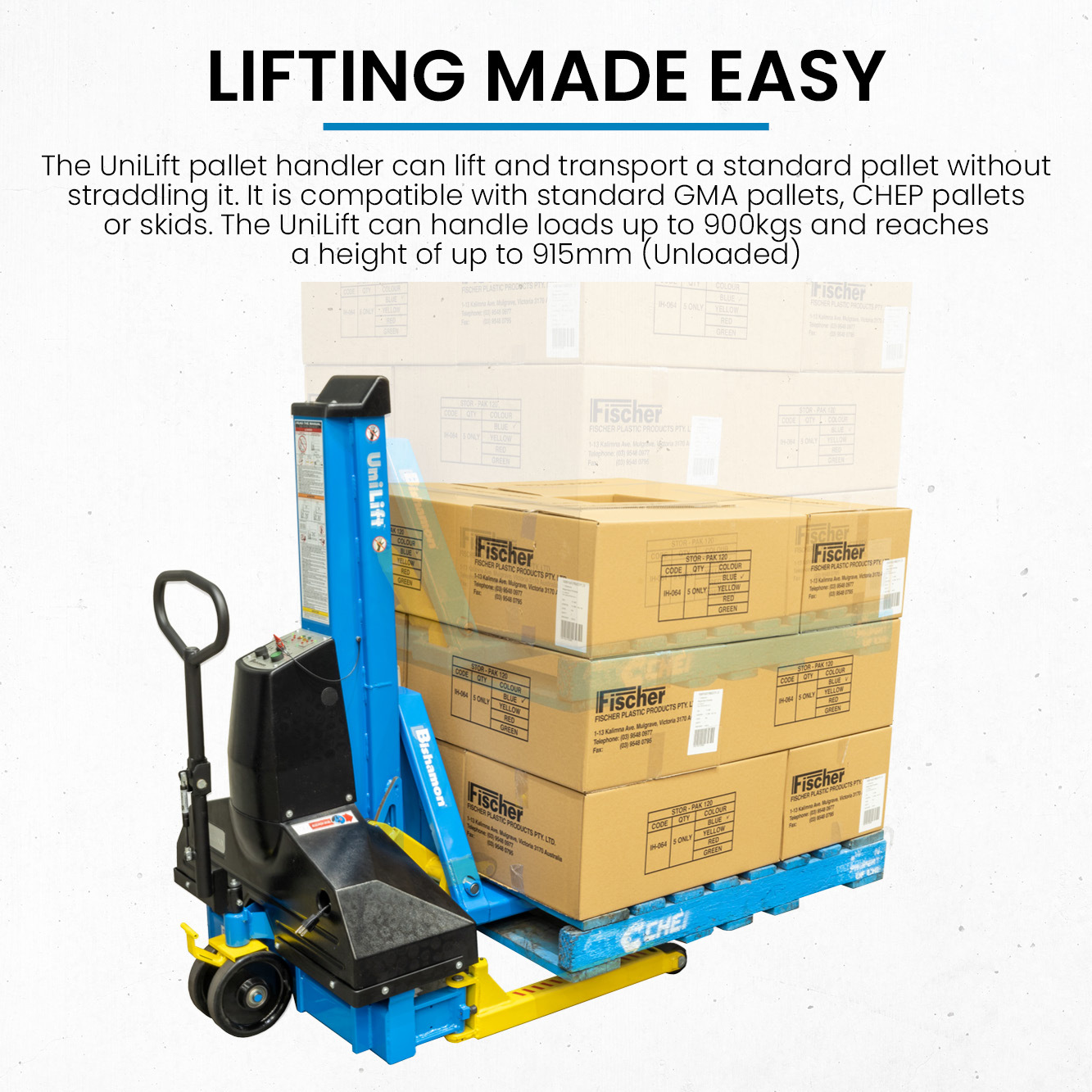

The UniLift pallet handler can  lift and transport a standard pallet without straddling it. It is compatible with standard GMA pallets, CHEP pallets or skids. The UniLift  can handle loads up to 900kgs and reaches a height of up to 915mm (Unloaded). Fitted with high quality polyurethane wheels, the UniLift easily transports loads.



The  UniLift is powered by an efficient 24 VDC battery system and an  on-board, automatic battery charger. It also features electro-mechanical  outrigger actuation with position sensors. The operator console contains convenient buttons that raise and lower the forks, and LED  indicators that display the battery status.



  • Dual-purpose product allows for both transport and load lifting
  • Handles and steers like a standard pallet jack
  • Lifting fork height up to 915mm
  • Outrigger leg height: 75mm
  • Lift Capacity up to 900kgs
  • Multi-roller fork entry system for easy pallet entry and exit
  • Foot brake on steering wheels
  • On-board, automatic battery charger
  • Efficient 24 VDC battery system powers lift operation
  • Electro-mechanical outrigger actuation with position sensors

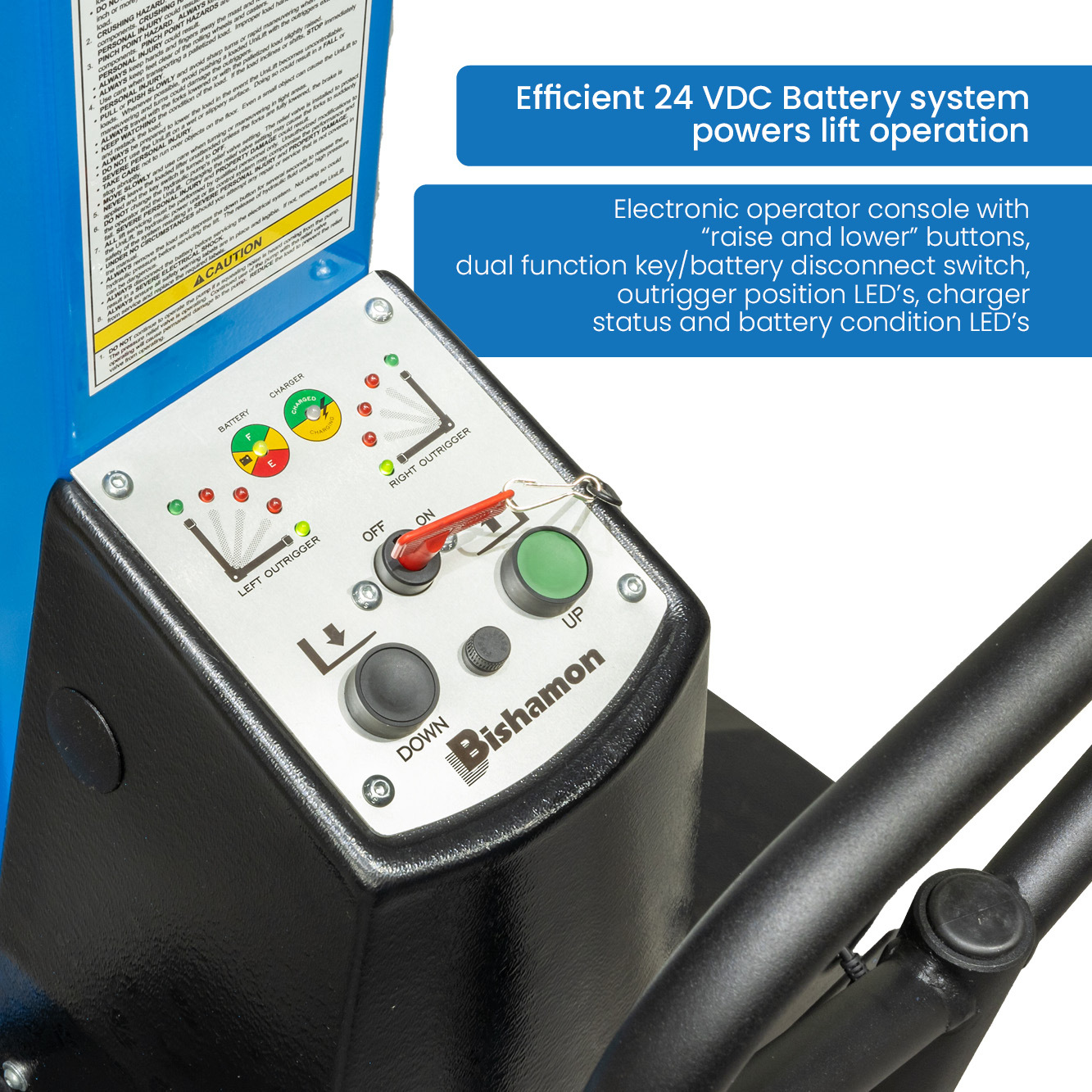

  • Electronic operator console with “raise and lower” buttons, dual function key /battery disconnect switch, outrigger position LED’s, charger status and battery condition LED’s

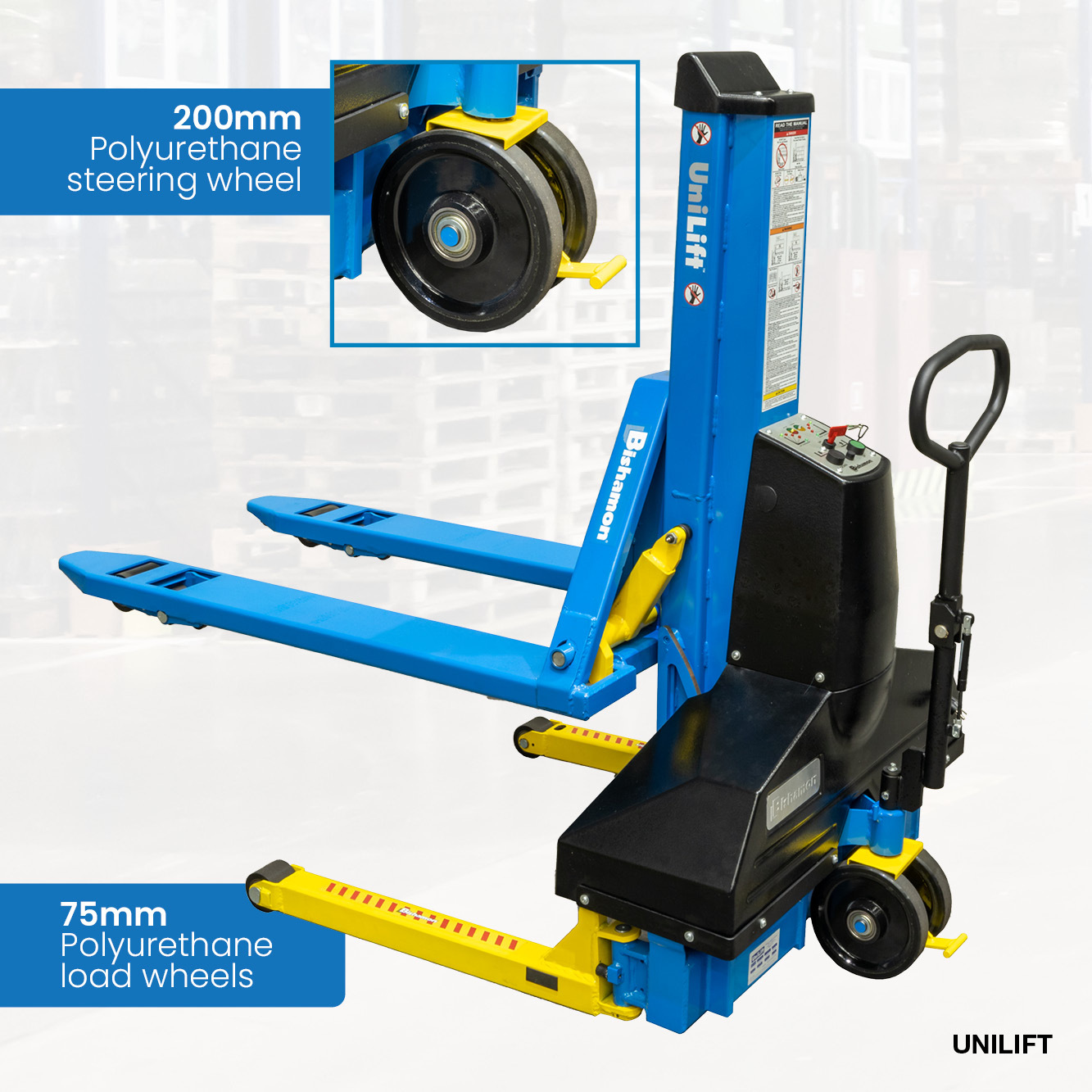

  • 200mm diameter polyurethane steering wheels
  • 75mm diameter polyurethane load wheels
  • Durable powder coated finish
  • Unit Weight: 340kg



Electric Hydraulic Powered Up and Down, Manual Push.
Issued Patents: United States No. 8,376,089; China No. ZL200780049482.8; Japan No. 5,575,484; Korea No. 10-1244363 and European Patent No. 2102092. Granted with effect in France, Germany, Italy, United Kingdom.
