Concrete Kibble 0.5 cubic metre Concrete Kibble 0.5 cubic metre Concrete Kibble 0.5 cubic metre Concrete Kibble 0.5 cubic metre
Click on image above to enlarge

Concrete Equipment

Concrete Kibble 0.5 cubic metre


$3,120.00 Price excludes GST

SKU

CKM05

Availability:

In StockIn Stock

Subtotal:

$3,120.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

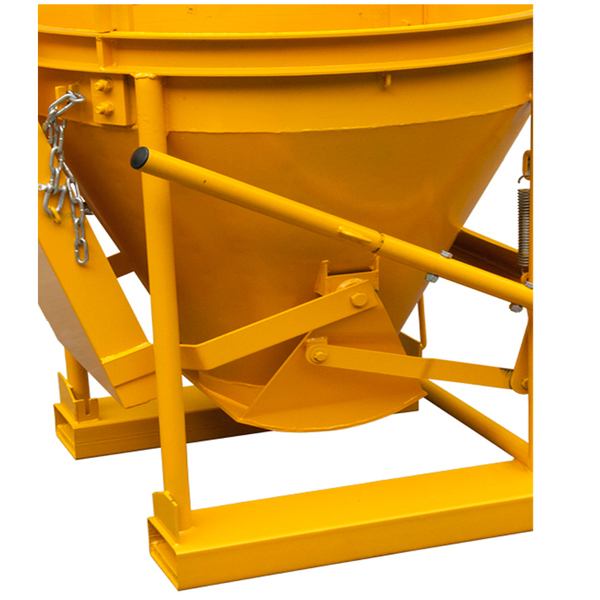

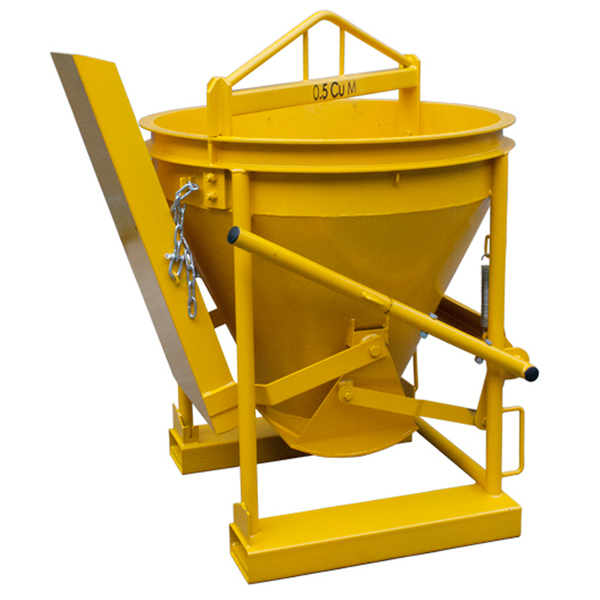

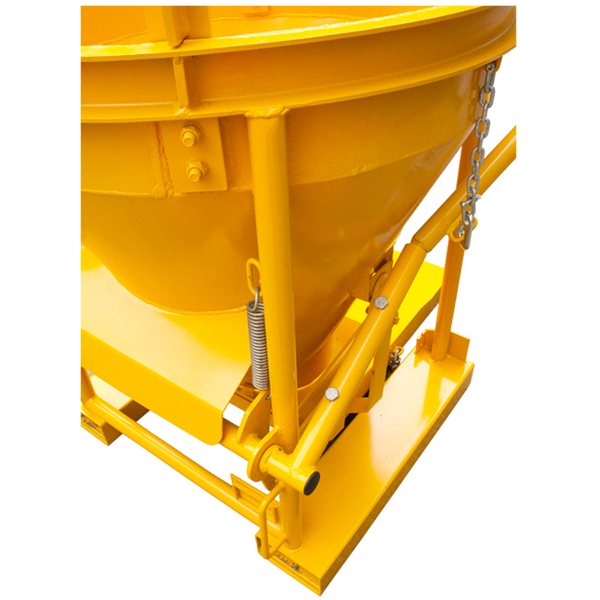

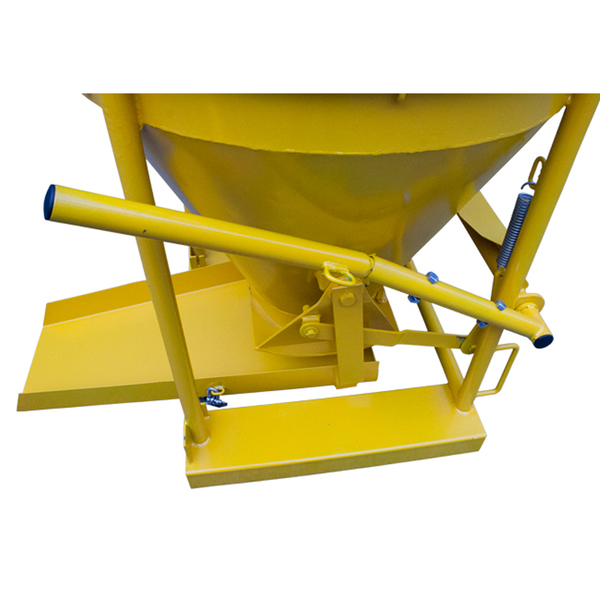

The CKM05 Concrete Kibble has been designed for easy transfer of concrete on site by overhead crane.

The type CKM05 has a volume capacity of 0.5 cubic metres. This lightweight yet heavy duty kibble can be used for both bottom or side discharge with the use of the adjustable chute.
This unit is lever operated from either side, allowing flexible operation.
Complete with forklift pockets for transportation around the worksite.

SPECIFICATIONS:

  • Painted ‘Safety Yellow” enamel
  • Safe Working Load (SWL) 1500kg
  • Volume Capacity 0.5 cubic metres
  • Overall Dimensions: 1630x1255x1500mm
  • Fork Pocket Size 185 x 60mm
  • Fork Pocket Centres 800mm
  • Unit Weight: 260kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Concrete Kibble 0.5 Cubic Metre is a heavy-duty, reliable solution for transporting and handling concrete and other bulk materials. With a safe working load (SWL) of 1500kg and a volume capacity of 0.5 cubic metres, this kibble is designed to handle substantial loads with ease.

Constructed with durability in mind, the kibble features a robust design and is painted in a high-visibility ‘Safety Yellow’ enamel, ensuring it stands out on site for added safety. The unit weighs 260kg and is equipped with fork pockets sized at 185 x 60mm, with fork pocket centres measuring 800mm, allowing for secure handling by forklift. Ideal for construction and industrial applications, the Concrete Kibble combines strength and functionality, making it an essential tool for efficient material management and safe operations on any job site.

CKM05 Concrete Kibble – Efficient & Versatile Concrete Handling Solution

The CKM05 Concrete Kibble is a high-performance solution built to simplify and improve the process of transporting and pouring concrete on construction sites. With a lightweight yet heavy-duty construction, this kibble is built to endure tough site conditions, making it an essential tool for concrete handling.

Featuring a dual discharge system, lever operation from both sides, and forklift pockets for easy movement, the CKM05 promises safe, efficient, and precise concrete placement.

Key Features & Benefits

✔ Heavy-Duty Construction – Constructed from high-quality steel for maximum durability and strength.
✔ Dual Discharge Function – Allows for bottom or side discharge, providing adaptability in different pouring situations.
✔ Adjustable Chute – Enables precise concrete flow control to suit certain project needs.
✔ Lever-Operated from Both Sides – Improves ease of use and flexibility during operation.
✔ Forklift Pockets – Designed for easy transport around the worksite.
✔ High Visibility Finish – Painted in Safety Yellow enamel for increased safety and visibility.

Designed for Efficiency & Safety

The CKM05 Concrete Kibble has been constructed to improve workflow on construction sites, ensuring concrete is delivered exactly where it is needed with minimal waste and effort.

✔ Strong yet lightweight – Designed to be easy to manoeuvre while maintaining high strength.
✔ User-friendly operation – The lever control system allows for precise concrete dispensing, reducing spills and wastage.
✔ Safe lifting and transportation – The unit is compatible with both overhead cranes and forklifts, providing flexibility.

Forklift & Crane Compatibility

✔ Fork Pocket Size: 185 x 60mm – Designed to fit standard forklift tines securely.
✔ Fork Pocket Centres: 800mm – Ensures stable lifting and movement.
✔ Crane Lifting Points – Allows for easy overhead lifting and positioning on-site.

The combination of forklift and crane compatibility makes the CKM05 Concrete Kibble a highly versatile piece of equipment, suited to numerous construction environments.

Specifications

  • Safe Working Load (SWL): 1500kg
  • Volume Capacity: 0.5 cubic metres
  • Overall Dimensions: 1630 x 1255 x 1500mm
  • Fork Pocket Size: 185 x 60mm
  • Fork Pocket Centres: 800mm
  • Unit Weight: 260kg

Ideal for Various Applications

The CKM05 Concrete Kibble is suited to a wide range of construction and industrial applications, including:

✔ High-Rise Construction – Efficiently transfer concrete to upper levels using an overhead crane.
✔ Civil Engineering Projects – Provides controlled concrete pouring for roadwork, bridges, and tunnels.
✔ Commercial & Residential Construction – Ensures efficient concrete handling on small and large-scale projects.
✔ Precast Concrete Facilities – Delivers precise concrete placement for molding and casting applications.

Why Choose the CKM05 Concrete Kibble?

✔ Dual discharge functionality – Offers versatility for different pouring needs.
✔ Heavy-duty and durable – Built to withstand demanding site conditions.
✔ Safe and efficient transport – Features fork pockets and crane lugs for easy lifting.
✔ Precise and controlled dispensing – Minimises concrete wastage and improves efficiency.
